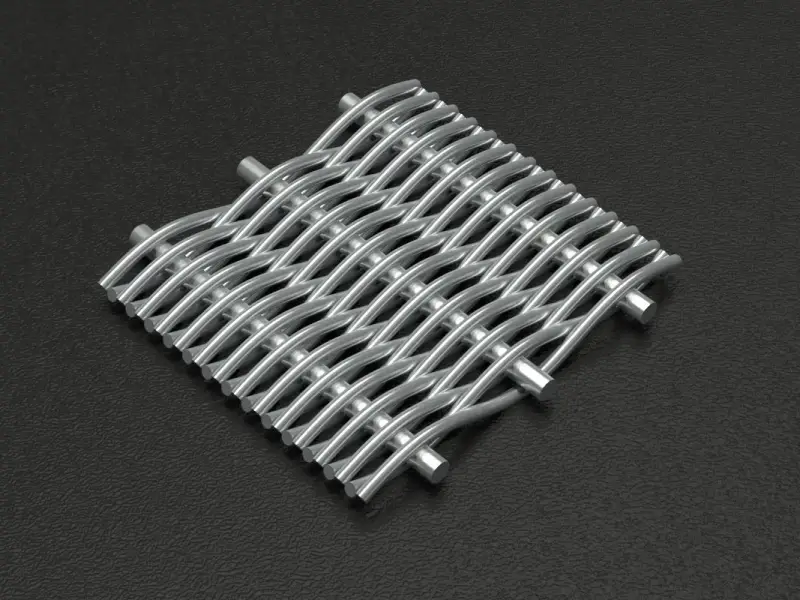

Precision Plain Dutch Weave Wire Mesh
Engineered for high-differential-pressure liquid and gas separation. MutualFilter manufactures dense Plain Dutch and Twilled Dutch weaves with uniform triangular pore geometry, ensuring stable micron cut-offs and predictable particulate retention under severe operating conditions.
Dense Wire Compaction Engineered for Critical Separation
Engineered specifically for demanding hydraulic, polymer, chemical, and gas filtration where standard square weaves yield under operating stresses.
Calibrated against ASTM E2814 & ISO 4783 Standards
Every compaction batch is verified with bubble point testing and optical pore geometry analysis.
Technical Specifications & Precision RFQ
Standard mill-grade stainless steel woven wire mesh specifications engineered to ASTM E2016 and ISO 9044 tolerance levels. Review nominal ratings below or configure custom lot specifications.
Nominal Mesh Aperture & Weave Matrix (1µm – 300µm Range)
All parameters validated via automated optical projection and bubble point verification.
| Weave Architecture | Mesh Count (Warp x Weft) | Nominal Wire Diameter | Aperture / Micron Rating | Weight (Nominal) | Compliance & Standard |
|---|---|---|---|---|---|
Plain Weave | 20 x 20 | 0.40 mm | 870 µm | 1.60 kg/m² | ASTM E2016 / ISO 9044 |
Plain Weave | 100 x 100 | 0.10 mm | 154 µm | 0.50 kg/m² | ASTM E2016 / ISO 9044 |
Twilled Weave | 200 x 200 | 0.05 mm | 77 µm | 0.25 kg/m² | ASTM E2016 / ISO 9044 |
Plain Dutch Weave | 24 x 110 | 0.35 x 0.25 mm | 80 – 90 µm | 1.45 kg/m² | DIN 1210 / ISO 4783 |
Twilled Dutch Weave | 165 x 1400 | 0.07 x 0.04 mm | 10 – 12 µm | 0.85 kg/m² | DIN 1210 / ISO 4783 |
Reverse Dutch Weave | 72 x 15 | 0.38 x 0.45 mm | 130 µm | 2.10 kg/m² | ASTM E2016 / ISO 9044 |
Ultra-Fine Twilled Dutch | 325 x 2300 | 0.035 x 0.025 mm | 2 – 3 µm | 0.62 kg/m² | ISO 9044 Grade A |
Target Industrial Applications
Aerospace Systems
High PressureCritical hydraulic fuel straining, bleed air filtration, and de-icing screen elements.
Polymer Extrusion
Thermal StabilityContinuous screen changers, multi-layer spot-welded packs, and spinneret disc assemblies.
Hydraulic Filtration
ISO 16889Pressure and return-line fluid protection, suction strainers, and servo valve protection.
Pharmaceutical & Cleanrooms
cGMP CompliantSanitary grade 316L separation screens with electropolished non-shedding surfaces.
Oil & Gas Exploration
NACE MR0175Sand control screens, shale shaker mesh panels, and downhole coalescer filters.
Engineering Comparison: Plain vs Twilled Dutch Weave
While Plain Weaves provide straight-through apertures ideal for high flow rates and low pressure drop (straining >50µm), Twilled Dutch Weaves offer tortuous channel filtration with mechanical stability down to 1-2µm under heavy operating differential pressures (Delta P).
Compact Weave Construction for Fine Particle Retention and Strength
MutualFilter supplies precision stainless steel plain Dutch weave mesh engineered for high mechanical stability, zero aperture distortion under differential pressure, and exact particle retention in demanding industrial filtration systems.
Full metallurgical lot traceability, EN 10204 3.1 material test certificates, and verified chemical composition for AISI 304, 316L, and 904L alloys.
Specialized plain Dutch construction expertise, calendered flat-surface processing, custom slit widths, and tight dimensional aperture tolerances.
Rapid technical reviews, custom mesh filtration feasibility evaluations, and complete engineering submittal drawings dispatched within 24 hours.
