Stainless Steel Wire Mesh for Filtration & Separation
Specialized B2B industrial filtration solutions engineered to exact aperture geometries. Supplying high-tolerance AISI 304 and 316L woven mesh for critical separation, straining, and hydraulic fluid systems across North American and European industries.

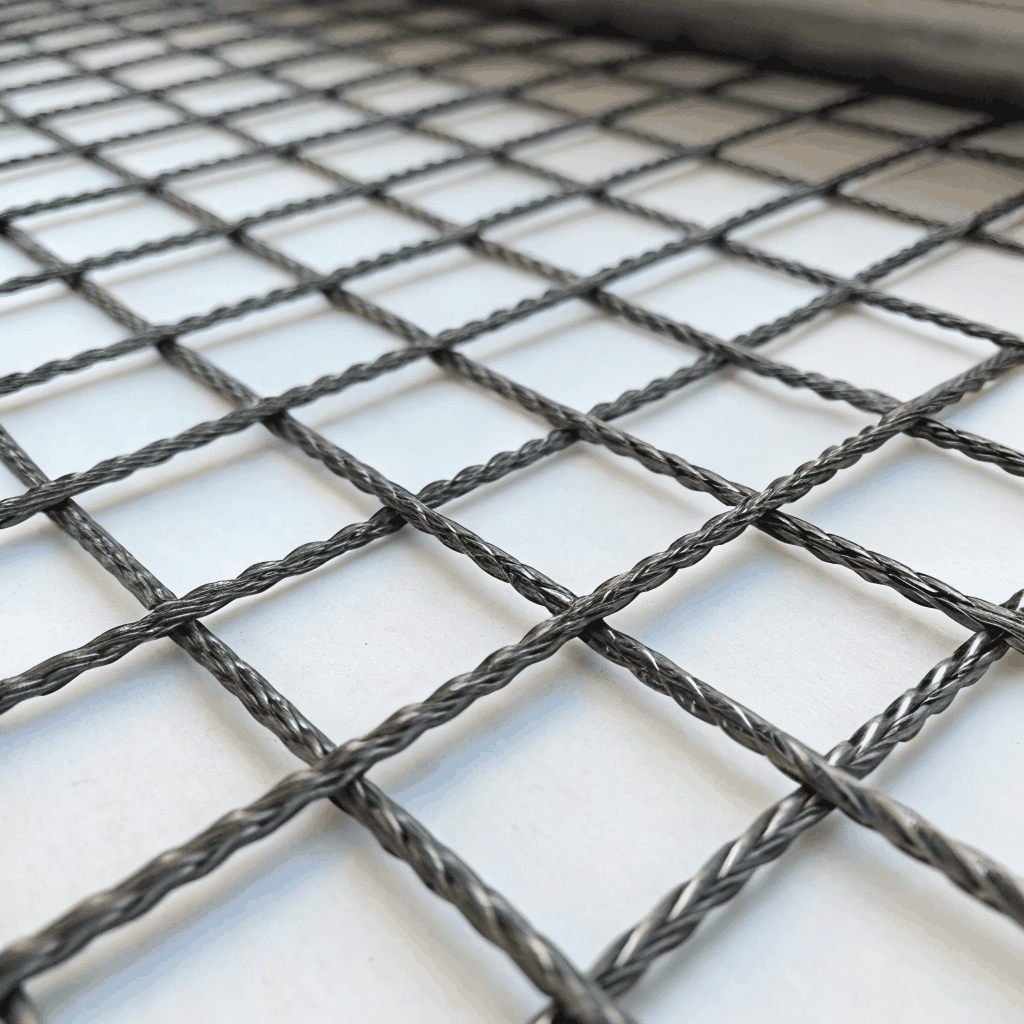

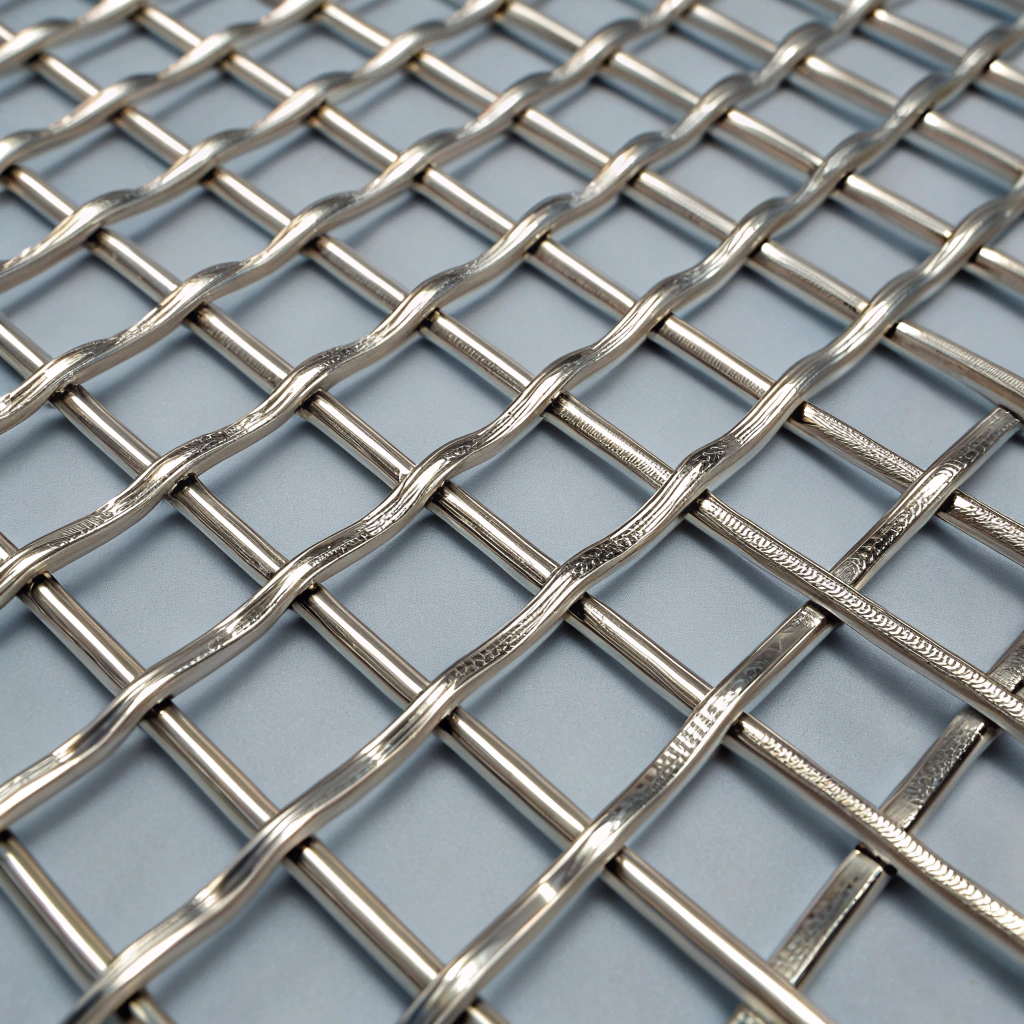

Square Plain Weave
120 Mesh / 0.080mm WireStandard symmetrical warp and weft for direct screening, gas straining, and hydraulic fluid circuits.
Engineered Wire Mesh Geometries for Rigorous Industrial Separation
Every woven structure is calibrated on high-tension CNC automated looms under strict DIN ISO 9044 tolerances. Select a weave category below to examine pore geometries, micron retention profiles, and mechanical differential limits.
Need Custom Micron Retention or Alloy Calibrations?
MutualFilter engineers custom slit coils, sintered composite laminates, pleated elements, and laser-cut discs tailored to your operating differential pressure and media chemistry.
Engineering Standards & Metallurgical Matrices
MutualFilter applies stringent international metallurgical benchmarks across our complete range of stainless steel and high-nickel woven wire meshes. Review verified aperture tolerances, mechanical tensile thresholds, and chemical corrosion profiles.
Geometrical Consistency Matrix (ISO 9044 / ASTM E2016)
Pore aperture geometry, weft/warp stability, and open-area permeability parameters.
| Alloy Grade | Standard Ref | Micron Rating (w) | Mesh Range | Aperture Tol. (±) | Open Area (Ao) |
|---|---|---|---|---|---|
AISI 304 (1.4301) | ASTM E2016 / ISO 9044 | 25 µm – 5,000 µm | 4 – 500 Mesh | ± 4.5% | 31.0% – 72.5% |
AISI 316L (1.4404) | ASTM E2016 / ISO 9044 | 15 µm – 4,000 µm | 6 – 635 Mesh | ± 3.0% | 28.5% – 68.0% |
AISI 904L (1.4539) | ASTM E2016 / DIN 17744 | 20 µm – 2,500 µm | 10 – 500 Mesh | ± 2.5% | 26.0% – 64.0% |
Inconel 600 (2.4816) | AMS 5687 / ISO 9044 | 32 µm – 3,000 µm | 8 – 400 Mesh | ± 2.0% | 24.0% – 61.5% |
Critical Manufacturing & QA Protocols
Precision engineering guidelines embedded into every roll, panel, and stamped filter disc.
Need a Custom Mesh Specification or Custom Alloy Run?
Our metallurgical engineers provide tailored wire diameter adjustments, specialized weave geometries (Twilled Dutch, Reverse Dutch), and secondary slitting or sintering services.
A Technical Approach to Filter Mesh Supply
Engineered stainless steel woven wire mesh backed by rigorous metallurgical standards, precision custom converting, and structured B2B delivery programs for global OEM manufacturers.
Aperture & Alloy Engineering
Engineering guidance to match precise weave styles, wire diameters, micron ratings, and alloy grades (AISI 304, 316L, 904L) to specific differential pressure and fluid chemistry needs.
ASTM & ISO Compliance
Full material traceability and batch verification. Every master roll undergoes optical aperture verification, tensile test validation, and metallurgical PMI inspection prior to dispatch.
Slitting, Pleating & Discs

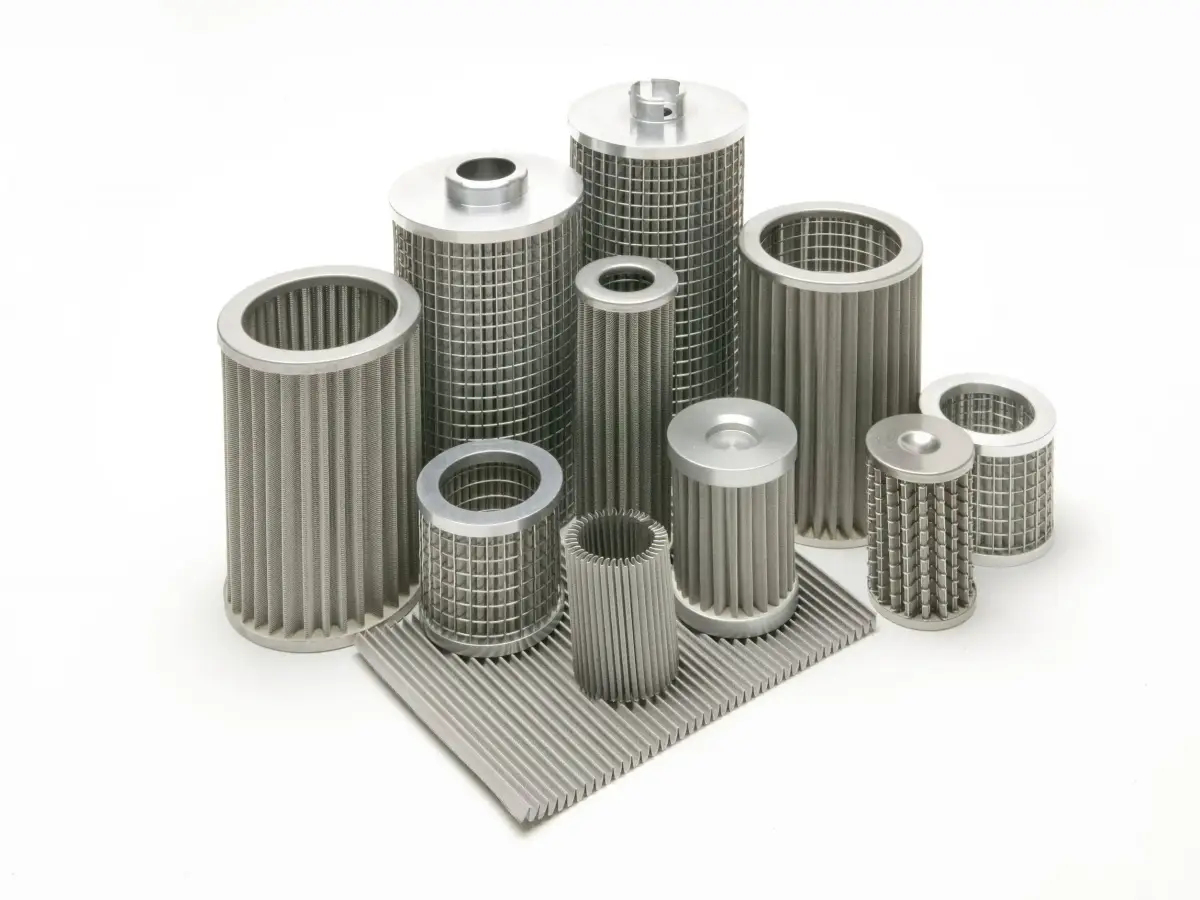

Precision conversion capabilities including custom slit ribbon coils, laser-cut filter discs, sintered multi-layer laminates, and framed mesh elements tailored to OEM manufacturing lines.
Scheduled Deliveries & Buffer Stock
Dedicated account management for industrial filter manufacturers and OEM buyers. Flexible blanket orders, scheduled freight delivery, and dedicated consignment stock agreements.
Require specific mesh micron ratings or OEM drawings review?
Our engineering team provides material test reports (MTR) and custom sample validation.
Engineered Supply Metrics for Industrial Filtration
Every production batch undergoes automated optical aperture verification, tensile testing, and 100% heat traceability to ensure zero-defect integration into critical industrial systems.
Precision Weaving Capacity
Multi-shift CNC rapier and shuttle loom operations delivering continuous high-density roll inventory.
Precision Micron Rating
Calibrated pore geometries across Plain, Twill Dutch, and Reverse Dutch wire weave configurations.
Certified Mill Alloys
Fully traceable raw wire melts certified with 3.1 chemical and mechanical inspection certificates.
Global OEM Deployments
Strategic supply agreements across North America, Western Europe, and high-spec processing plants.
Custom Mesh Weave & Slitting Specifications Available
Technical consultation on flow resistance, differential pressure (Delta-P), and specialized alloy wire draws.
Industrial Applications & Standards
Mission-critical stainless steel woven wire cloth configurations engineered to meet stringent thermal, differential pressure, and metallurgical compliance across Tier-1 industrial sectors.
Operational uptime in hot sulfuric acid streams
Cross-Sector Deployment Reference
Rapid index of wire cloth matrices by filtration application.

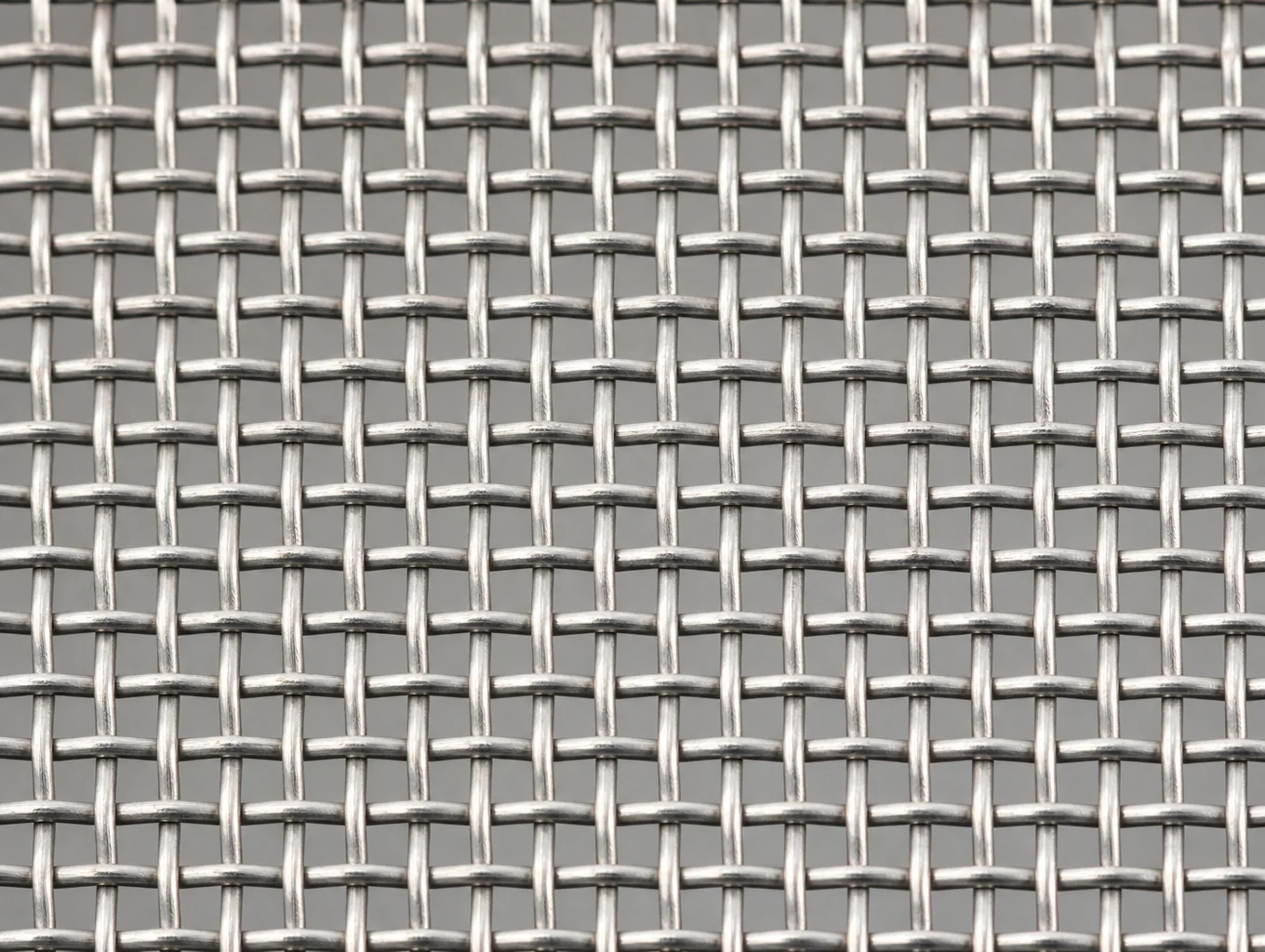

Chemical Processing

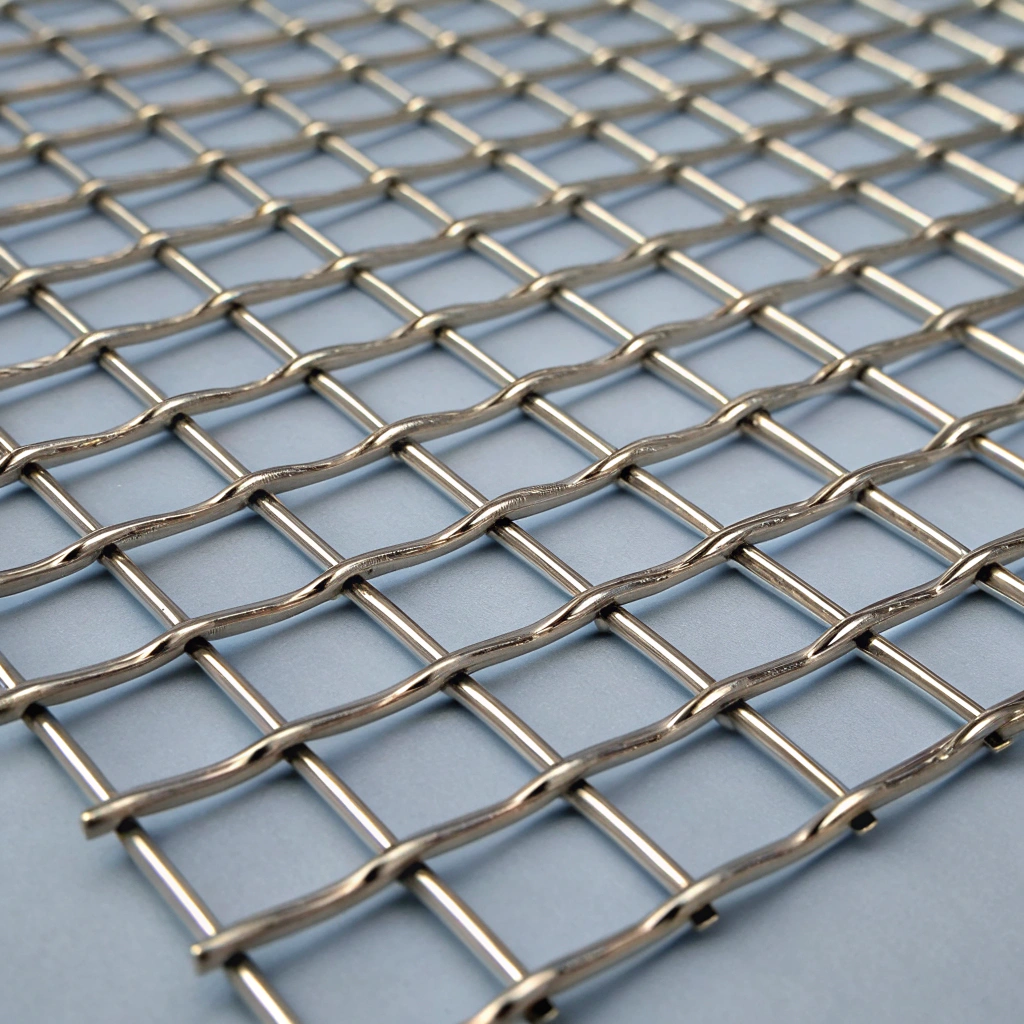

Reverse Dutch Weave (PZ Series)
Aerospace Hydraulics

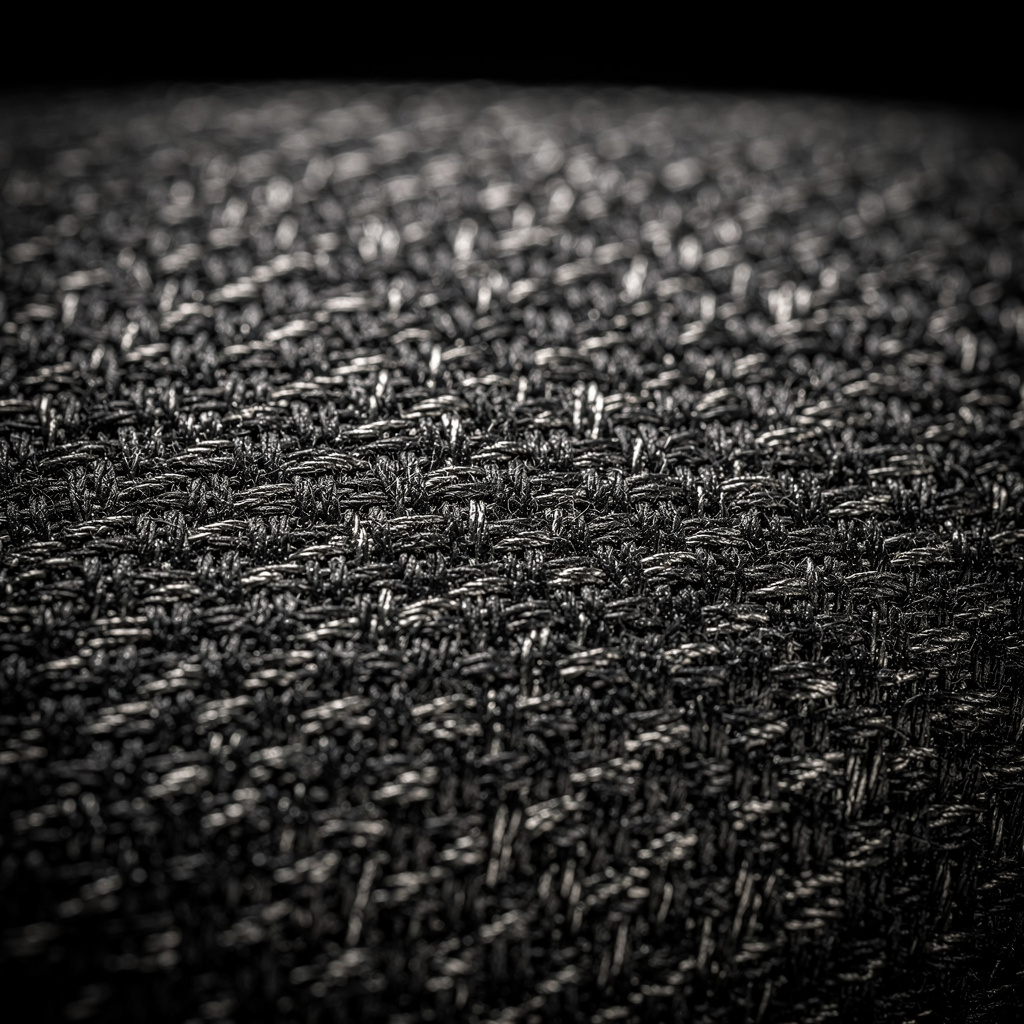

Twilled Dutch Weave (325×2300 Mesh)
Water Treatment
Square Plain Weave / Multipor Dutch
Pharmaceuticals

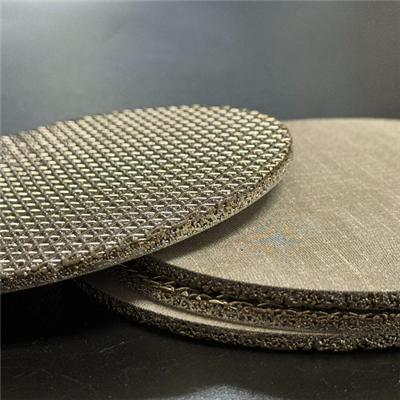

5-Layer Sintered Wire Cloth Matrix
Polymer Melt Filtration
Multi-Layer Bound Screen Packs & Candle Elements
Request Technical Consultation & Mesh Feasibility
Direct consultation for OEM engineers, filtration equipment fabricators, and procurement teams. Receive comprehensive aperture analysis, alloy recommendations, and sample verification.
Engineering SLA & Deliverables
24-Hour Technical Feasibility
Direct review by metallurgical application engineers with aperture tolerance assessments.
ISO 9044 / ASTM E2016Material Certification & Traceability
Full EN 10204 3.1 chemical inspection certificates and PMI alloy verification on every batch.
Full 3.1 TraceabilityCAD & Rapid Sample Dispatch
Immediate step-file compatibility checks with sample swatch kits shipped worldwide within 48 hours.
Custom Laser Cut SwatchesDirect Engineering Desk
Need urgent technical clearance for an active fabrication run? Contact our senior metallurgical specialists directly:
Engineering Consultation & Spec Review
Complete the parameter matrix below for dimensional review or sample dispatch.
