Aperture Sizing & Micron Ratings for Industrial Wire Mesh
Filtration performance depends on matching aperture width, wire diameter, and micron ratings. Explore how geometric pore dimensions govern particle retention, open area percentage, and fluid pressure loss.
Clear distance between two adjacent warp or weft wires, defining the mechanical particle cutoff.
Particle retention threshold measured in micrometers (1 µm = 0.001 mm = 0.00003937 in).
Ratio of open space to total area, dictating flow velocity, throughput, and system pressure drop.
Interactive Spec Lookup
Select standard industrial mesh counts
Powder classification & pharmaceutical liquid processing
Nominal vs. Absolute Micron Ratings
Understanding the technical differences between nominal efficiency and absolute retention thresholds is fundamental for sizing stainless steel wire cloth, optimizing pressure drops, and protecting downstream equipment.
Operates primarily with square aperture geometries where rigid wires allow direct straight-line fluid passage with high total percentage open area (up to 60%).
- Lower initial clean differential pressure drop across high flow velocities.
- High dirt-holding capacity for coarse solids, fibers, and heavy slurry.
- Pore bypass possible under fluctuating pressure spikes or irregular particle shapes.
Employs tightly packed warp and shute wire configurations (Dutch weaves) creating triangular micro-channels verified through bubble point testing.
- Strict filtration integrity for critical aerospace, pharma, and chemical processes.
- Rigid dimensional stability resisting pore enlargement up to 300+ bar differential.
- Requires staged pre-filtration to prevent premature cake blinding.
Engineering Comparison & Sizing Guidance
Select view to inspect detailed specifications or application matching.
| Engineering Parameter | Nominal Standard | Absolute Standard | Standard Note |
|---|---|---|---|
| Definition & Baseline | Arbitrary value indicating retention of an approximate percentage of particles (typically 50% to 90%). | Precise pore rating guaranteeing that 99.9% to 100% of particles larger than specified size are retained. | |
| Retention Efficiency | Variable efficiency rating (typically 60% – 85% beta ratio rating). | Standardized Beta Ratio ≥ 1000 (99.9% efficiency) or glass bead challenge test validation. | |
| Wire Mesh Structure | Commonly applied to standard plain and twill square weaves where open area varies under flow pressure. | Calendered Dutch weaves (Plain Dutch, Twilled Dutch, Reverse Dutch) with fixed geometric micro-pores. | |
| Operating Pressure Sensitivity | Efficiency can decrease as differential pressure increases due to particle migration. | Pore openings remain rigid and dimensionally fixed up to maximum rated differential pressure. | |
| Primary Functional Role | Pre-filtration, bulk solid-liquid separation, coarse straining, and system component protection. | Critical final polish, sterile barrier support, turbine fuel clarity, and precision downstream protection. | |
| Cost vs. Service Life Ratio | Economical unit cost, lower initial pressure drop, high dirt-holding capacity. | Higher precision manufacturing, tighter QA validation, higher clean pressure drop. |
Frequently Asked Technical Questions
Practical guidance from MutualFilter wire mesh specialists on rating verification and testing.
Need Verification of Aperture Tolerances or Bubble Point Certification?
MutualFilter provides laboratory bubble point data, optical aperture analysis, and custom alloy weave specifications for high-reliability industrial operations.
Mesh to Micron Conversion Table
Standard technical reference for stainless steel woven wire mesh. Convert mesh count to aperture dimensions (metric / imperial), micron ratings, and open area percentages.
Mesh Count | Micron Rating (μm) | Aperture (mm) | Aperture (Inches) | Wire Dia. (mm) | Open Area (%) | Weave Pattern | Standard Alloys |
|---|---|---|---|---|---|---|---|
| 2 x 2 | 11100 μm | 11.100 | 0.4370 | 1.600 | 76.4% | Plain Weave | 304 / 316L |
| 4 x 4 | 5150 μm | 5.150 | 0.2028 | 1.200 | 65.8% | Plain Weave | 304 / 316L |
| 10 x 10 | 1980 μm | 1.980 | 0.0780 | 0.560 | 60.7% | Plain Weave | 304 / 316L |
| 16 x 16 | 1138 μm | 1.138 | 0.0448 | 0.450 | 51.4% | Plain Weave | 304 / 316L |
| 20 x 20 | 870 μm | 0.870 | 0.0343 | 0.400 | 46.9% | Plain Weave | 304 / 316L / 316Ti |
| 30 x 30 | 547 μm | 0.547 | 0.0215 | 0.300 | 41.7% | Plain Weave | 304 / 316L |
| 40 x 40 | 385 μm | 0.385 | 0.0152 | 0.250 | 36.8% | Plain Weave | 304 / 316L / 904L |
| 50 x 50 | 284 μm | 0.284 | 0.0112 | 0.224 | 31.3% | Plain Weave | 304 / 316L |
| 60 x 60 | 243 μm | 0.243 | 0.0096 | 0.180 | 33.1% | Plain Weave | 304 / 316L |
| 80 x 80 | 178 μm | 0.178 | 0.0070 | 0.140 | 31.4% | Plain / Twilled | 304 / 316L / Hastelloy |
| 100 x 100 | 154 μm | 0.154 | 0.0061 | 0.100 | 36.8% | Plain Weave | 304 / 316L |
| 150 x 150 | 106 μm | 0.106 | 0.0042 | 0.063 | 39.4% | Plain Weave | 304 / 316L |
| 200 x 200 | 77 μm | 0.077 | 0.0030 | 0.050 | 36.8% | Plain / Twilled | 304 / 316L / 316Ti |
| 250 x 250 | 62 μm | 0.062 | 0.0024 | 0.040 | 36.9% | Twilled Weave | 316L / 904L |
| 325 x 325 | 43 μm | 0.043 | 0.0017 | 0.035 | 30.5% | Twilled Weave | 316L |
| 400 x 400 | 34 μm | 0.034 | 0.0013 | 0.030 | 28.2% | Twilled Square | 316L |
| 500 x 500 | 25 μm | 0.026 | 0.0010 | 0.025 | 26.0% | Twilled Square | 316L |
| 24 x 110 (Dutch) | 110 μm | Nominal | Nominal | 0.35 / 0.25 | High Flow | Plain Dutch Weave | 304 / 316L |
| 165 x 1400 (Dutch) | 10 μm | Absolute | Absolute | 0.07 / 0.04 | Compacted | Twilled Dutch Weave | 316L / 904L |
| 325 x 2300 (Dutch) | 2 μm | Absolute | Absolute | 0.038 / 0.025 | High Density | Reverse Dutch Weave | 316L / Hastelloy C-22 |
Need a Custom Mesh Count or Non-Standard Alloy?
MutualFilter manufactures custom woven wire cloth in SS304L, SS316L, 904L, Monel, Inconel, Hastelloy, and Titanium.
Testing Standards & Aperture Verification
Industrial filtration and screening demand verifiable pore consistency and exact wire spacing. MutualFilter products comply with global ISO and ASTM benchmarks, backed by calibrated optical analysis and traceable lot certificates.

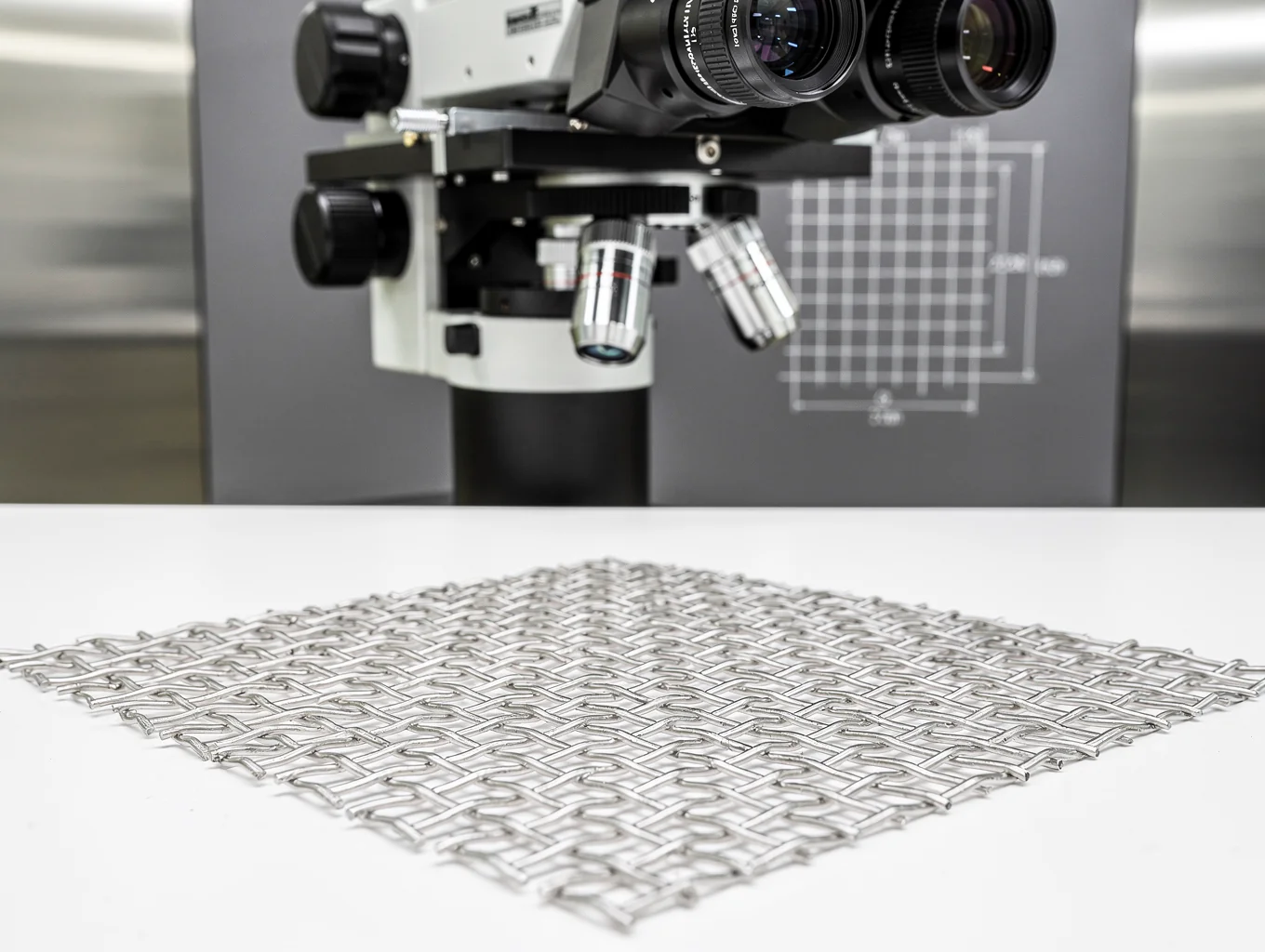

Laser Optical Analysis
Sub-micron optical profile verification ensures every aperture adheres strictly to target pore geometry.
Full Alloy Traceability
Raw wire coils undergo spectroscopic metal verification to confirm standard austenitic grade integrity.
Custom Verification Protocols
Tailored bubble point, hydrostatic, and air permeability tests for OEM and mission-critical specifications.
Require specific testing tolerances or certified test sieves?
Provide your required micron rating, mesh aperture dimensions, or industry testing standard. Our engineering team will review your drawings and supply full technical documentation.
