Custom Wire Mesh Engineering for Industrial OEMs
From alloy selection and proprietary weave development to multi-layer sintered laminates and precision CNC slit coils. MutualFilter delivers tightly toleranced stainless steel mesh components built to OEM specifications.
Precision Slitting & Stripping
Widths from 5.0 mm to 2,000 mmBurr-free edge finishing with ultrasonic slit options for critical fluid filters.
Multi-Layer Sintered Laminates
2 to 7 custom layered meshesHigh-pressure diffusion bonding resisting mechanical deformation under cyclic loads.
Custom Pleating & Forming
Depth 5 mm – 120 mm custom geometriesReinforced wire-backed pleat packs for cylindrical and panel OEM cartridge assemblies.
Die-Cutting & Deep Drawing
Tolerances within ±0.05 mmCustom discs, stamped cups, and ring-welded seals ready for direct housing insertion.
Need Custom Weave Prototyping?
Material test reports (MTR 3.1) with every trial lot.
CAD & Tooling Integration
Direct integration with OEM design teams to optimize wire diameter, warp/shute tension, and open area.
Traceable Material Stock
Rigorous chemical composition control for medical, chemical, and food contact compliance.
Consistent Batch QA
Bubble point testing, glass bead glass particle dispersion, and optical aperture verification on every roll.
Our Custom Mesh Engineering Process
From initial design consultation and fluid dynamic modeling to high-precision weaving, sintering, and ISO-certified laboratory validation.
Our engineering team evaluates your operational parameters including media chemistry, operating temperatures, differential pressures, flow rates, and particulate retention targets.
Key Deliverables & Milestones:
- Operating condition analysis
- Alloy compatibility verification (304, 316L, 904L, Inconel)
- Aperture & micron rating calculation
Strict tolerance governance and continuous QA verification at Step 01 ensure reproducible filtration performance in critical OEM assemblies.
Selection of optimum weave architecture (Plain, Twill, Dutch, or Reverse Dutch) paired with precise warp and weft wire diameters to achieve mechanical rigidity and target permeability.
Key Deliverables & Milestones:
- Custom weave pattern simulation
- Air & liquid permeability modeling
- Prototype test swatches (100mm x 100mm)
Strict tolerance governance and continuous QA verification at Step 02 ensure reproducible filtration performance in critical OEM assemblies.
Production on high-tension rapier and shuttle looms under environmental control. Optional multi-layer vacuum diffusion bonding (sintering) for non-shifting pore geometries and extreme pressure resistance.
Key Deliverables & Milestones:
- Automated tension-controlled weaving
- High-vacuum sintering cycle data
- Surface treatment & ultrasonic cleaning
Strict tolerance governance and continuous QA verification at Step 03 ensure reproducible filtration performance in critical OEM assemblies.
Every production run undergoes automated optical aperture verification, bubble point pore size determination, metallurgy spectrometry (PMI), and tensile strength certification.
Key Deliverables & Milestones:
- 3.1 Material Test Report (EN 10204)
- Bubble point test certificates (ISO 4003)
- Optical pore size distribution charts
Strict tolerance governance and continuous QA verification at Step 04 ensure reproducible filtration performance in critical OEM assemblies.
Final conversion into slit coils, stamped discs, welded cylinders, or framed filter leaves, protected with moisture-barrier packaging ready for seamless integration into your assembly lines.
Key Deliverables & Milestones:
- Laser cutting, stamping & plasma welding
- Core-stabilized wooden crate packing
- Scheduled releases & dedicated consignment stock
Strict tolerance governance and continuous QA verification at Step 05 ensure reproducible filtration performance in critical OEM assemblies.
Industrial Mesh Manufacturing Tolerances & Standards
Engineered according to international filtration standards for extreme operational reliability.
SS 304, 316L, 904L, Hastelloy, Monel, Titanium
1 Micron to 10 Millimeters (1 to 2300 Mesh)
ISO 9001:2015, FDA Compliant, EN 10204 3.1
Rapid Prototypes in 5-7 Days | Standard Runs 2-3 Weeks
Ready to engineer a custom mesh solution?
Send our metallurgists and engineers your drawing, micron requirements, or application specs.
Technical Capabilities & Precision Standards
MutualFilter engineers and delivers specialized stainless steel and nickel alloy woven wire meshes. Every production batch meets strict international standards with full chemical traceability, defined aperture tolerances, and verified flow characteristics.
Aperture Range
1 µm – 5,000 µm
From ultra-fine Dutch weaves to heavy square meshes
Wire Diameters
0.020 mm – 2.50 mm
Precision calibrated high-tensile wire drawing
Manufacturing Standard
ISO 9044 / ASTM E2016
Class A & Class B certified weave uniformity
Alloy Grades
12+ Certified Alloys
Full metallurgical traceability & 3.1 MTR test reports
| Alloy Grade / DIN | Max Working Temp | Corrosion Characteristics | Common Application | Conformance |
|---|---|---|---|---|
| AISI 304 / 304L (1.4301 / 1.4307) | 800°C (1472°F) | Standard industrial & atmospheric resistance | Food processing, basic chemicals, general straining | ASTM A580 / DIN EN 10088-3 |
| AISI 316 / 316L (1.4401 / 1.4404) | 870°C (1598°F) | High molybdenum content; resists chlorides & pitting | Pharmaceutical, marine, chemical filtration, oil & gas | ASTM A580 / FDA compliant |
| AISI 904L (1.4539) | 400°C (752°F) | Superior resistance to sulfuric and phosphoric acids | Petrochemical refining, fertilizer, bleach plants | ASTM B625 / NACE MR0175 |
| Hastelloy C-22 / C-276 | 1000°C (1832°F) | Exceptional resistance to wet chlorine, formic & acetic acids | Corrosive waste processing, sour gas, harsh synthetics | ASTM B574 |
| Inconel 600 / 625 | 1150°C (2102°F) | Immune to chloride-ion stress corrosion cracking | High-heat aerospace, nuclear exhaust, furnace baffles | ASTM B166 |
| Monel 400 (Nickel-Copper) | 480°C (896°F) | Resistant to sea water, hydrofluoric acid, and alkalis | Marine intake filters, brine screening, desalination | ASTM B164 |
Require specific mesh dimensions, sintering, or custom stamping?
Send your technical drawing or CAD file (.step, .dxf, .pdf). Our technical engineering team provides specification reviews and quotes within 24 business hours.
Engineered Wire Mesh Case Studies
Real-world performance data from filtration equipment manufacturers and OEM engineers who rely on MutualFilter custom stainless steel mesh solutions.

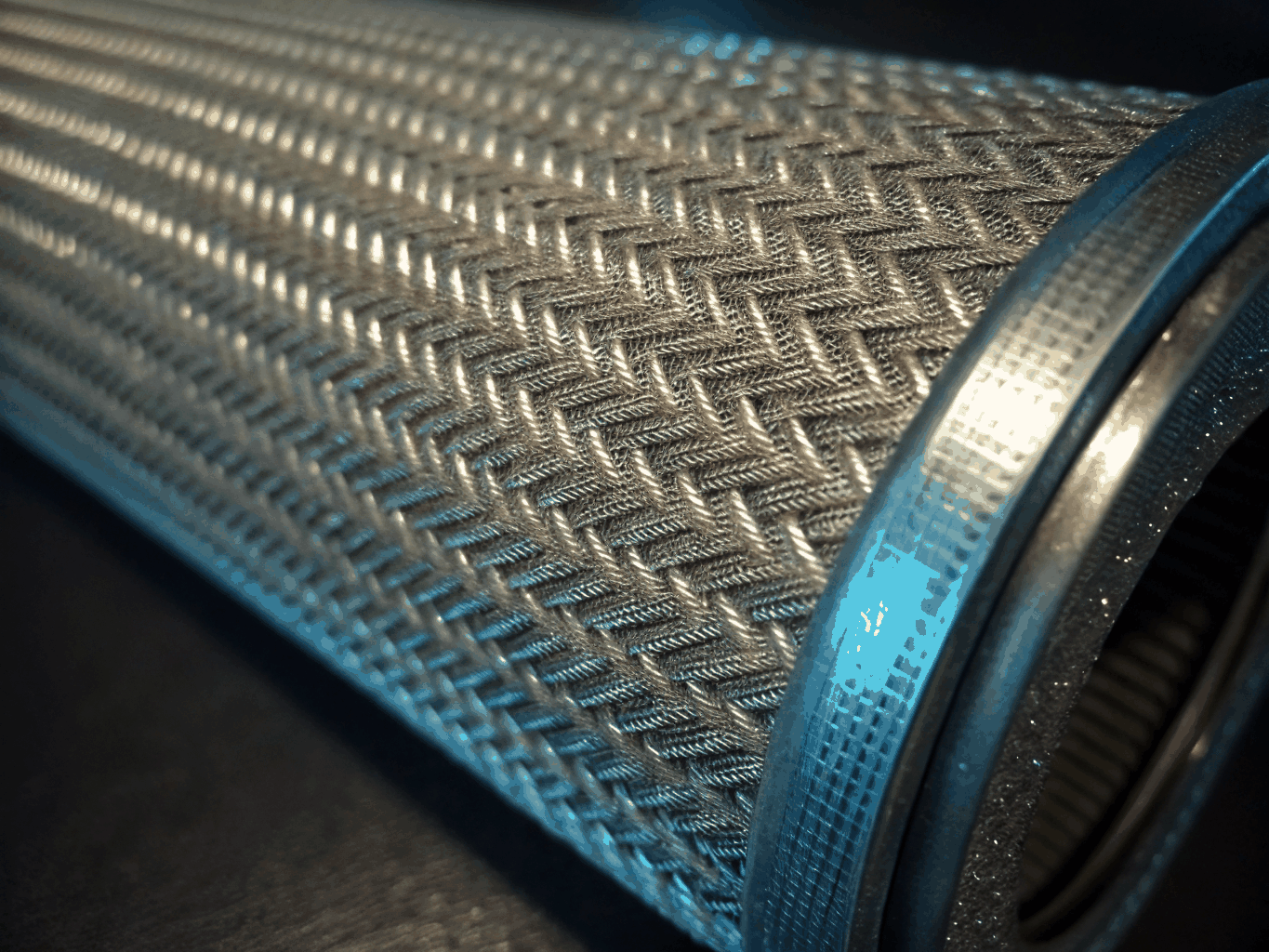

High-Pressure Micron Hydraulic Filtration
Excessive particulate pass-through and rapid pressure drop across standard multi-layer elements under 350 bar cyclic loads.
Custom engineered high-tensile 316L Dutch weave with calibrated pore geometry and reinforced wire diameter tolerance under +/-0.002mm.
What OEM Buyers & Engineers Say
Reliable woven wire mesh supply backed by material certifications and technical collaboration.
"MutualFilter delivered custom Dutch weave rolls with consistent aperture uniformity across 12,000 meters. Their batch-to-batch traceability has made them our primary filtration media supplier for all heavy-duty assemblies."
"Finding a wire mesh partner capable of manufacturing custom sintered discs with tight diameter tolerances was critical for our new filter vessel line. Technical support and fast dimensional sampling cut our prototyping timeline in half."
"Every shipment comes accompanied by full material test certifications and aperture measurement reports. Their quality control gives our quality assurance team absolute peace of mind for sanitary food and beverage applications."
Need a Custom Weave or Micron Specification?
Our metallurgical engineers evaluate your flow velocity, differential pressure, chemical resistance, and mesh weave density to configure optimal wire cloth.
Need a Custom Wire Mesh Specification?
MutualFilter engineers work directly with industrial equipment builders, filtration manufacturers, and plant operators to supply custom woven wire mesh, sintered filter discs, and precision screen rolls.
Exact Mesh & Aperture Tolerances
Custom weave patterns from 2 mesh down to 500+ mesh, tailored for precise micron retention.
Material Certification & Traceability
Full mill test reports, RoHS/REACH compliance, and material traceability certificates with every shipment.
Rapid Engineering Response
Detailed technical evaluation and custom quote delivered by our application engineers within 24 hours.
Direct Technical Consultation
Have 2D/3D CAD drawings or urgent procurement schedules?
Request Engineering RFQ
Provide your application specifications for a custom quotation and mesh drawing review.
