Precision Woven Wire Mesh for Critical Process Filtration
Engineered stainless steel woven wire cloth in Plain, Twilled, Plain Dutch, and Twilled Dutch configurations. Fabricated in AISI 304, 316L, 904L, and specialized nickel alloys for stringent screening, liquid-solid straining, and chemical separation.
Micron Rating
25 µm Nominal
Calibrated Looms Engineered for Stringent Retention Limits
At MutualFilter, every square meter of stainless steel woven wire mesh is manufactured on state-of-the-art CNC rapier looms equipped with closed-loop electronic tension control. By eliminating mechanical variance across the entire loom width, we prevent aperture deformation and yield absolute micron retention ratings.
Following precision weaving, all filtration media undergoes multi-stage ultrasonic cleanroom degreasing to remove drawing lubricants and residual particulates, guaranteeing compliance with high-purity pharmaceutical, aerospace, and polymer melt filtration standards.
Tensile Integrity
Precision warp/weft tension calibration eliminates wire slippage and maintains structural rigidity under extreme differential pressure.
Pore Consistency
Strict geometric aperture distribution engineered in accordance with ISO 9044 Class A tolerances for exact particle cutoff.
Chemical Compatibility
High-grade 304, 316L, 904L, and Hastelloy wire stock with cleanroom ultrasonic degreasing for demanding chemical processing.

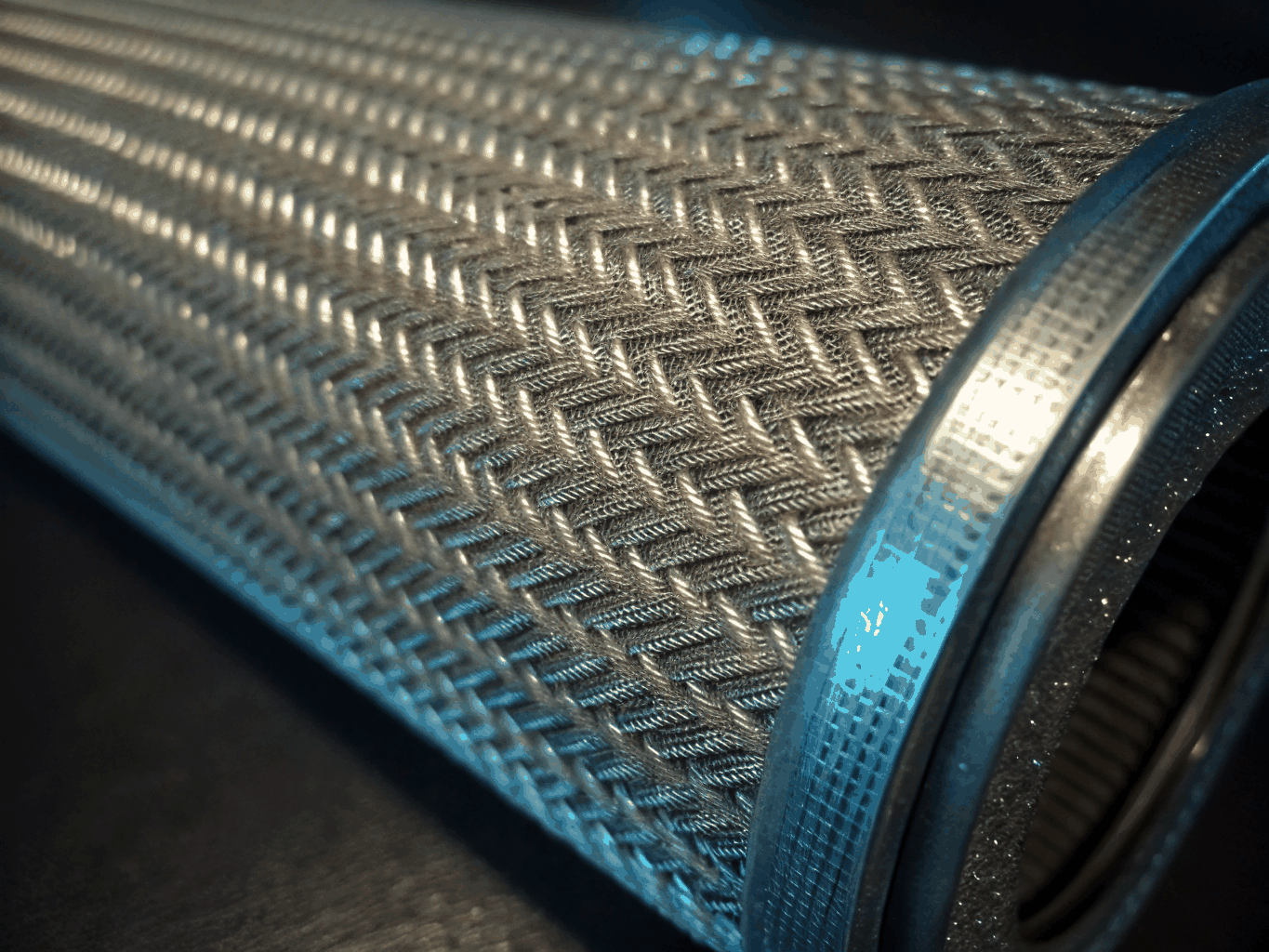

Real-time optical laser inspection during 316L Dutch weave cycle
Standard & High-Differential Weave Architectures
Engineered weave geometries tailored for optimal mechanical stability, flow coefficient, and micron-level particle separation.
Precision Wire Mesh Specification & Alloy Matrix
Engineered aperture tolerances, weave classifications, and metallurgy for critical filtration, separation, and straining applications across industrial environments.
Standard Industrial Weave Matrix
Click any weave structure to view tolerance alignment
| Weave Type | Mesh Count Range | Nominal Aperture (µm) | Open Area % | Standard Alloys | Standard |
|---|---|---|---|---|---|
Plain Weave (Square Mesh) | 1×1 to 500×500 | 25µm – 10,000µm | 25% – 85% | AISI 304, 304L, 316, 316L | DIN ISO 4783-2 |
Twilled Weave | 20×20 to 635×635 | 20µm – 1,000µm | 20% – 58% | AISI 316L, 321, 310S | ASTM E2016-20 |
Plain Dutch Weave (PDW) | 12×64 to 80×700 | 10µm – 300µm | 18% – 42% | 316L, 904L, Hastelloy C-22 | ISO 9044 Class A |
Twilled Dutch Weave (TDW) | 20×250 to 500×3500 | 1µm – 100µm | 12% – 32% | 316L, Alloy 20, Monel 400 | ISO 9044 Class A+ |
Reverse Dutch Weave (RDW) | 72×15 to 400×120 | 15µm – 250µm | 16% – 38% | AISI 304, 316, 316L | DIN 1210 High-Tensile |
Broad Mesh / Five-Heddle | 10×10 to 120×120 | 60µm – 1,500µm | 30% – 65% | 316L, Inconel 600, Hastelloy | ASTM E2016-20 |
Bubble Point Verification
ASTM F316 test protocols correlate absolute micron cut-off ratings with calculated pressure differential curves.
Material Traceability
Positive Material Identification (PMI) spectral analysis and mill test reports provided with every production heat lot.
Compliance & Standards
Need Tailored Mesh Apertures or Slit Roll Dimensions?
From bespoke slit coil widths and stamped multilayer filter discs to proprietary aperture calibrations, our metallurgical engineering team supplies tailored mesh solutions complete with ASTM E2016 compliance certifications.
Custom roll widths from 10 mm to 2,000 mm with tight edge tolerances.
Single or multi-layer stamped discs, circles, and custom tooling shapes.
Complete metallurgical test reports and aperture verification sheets.
