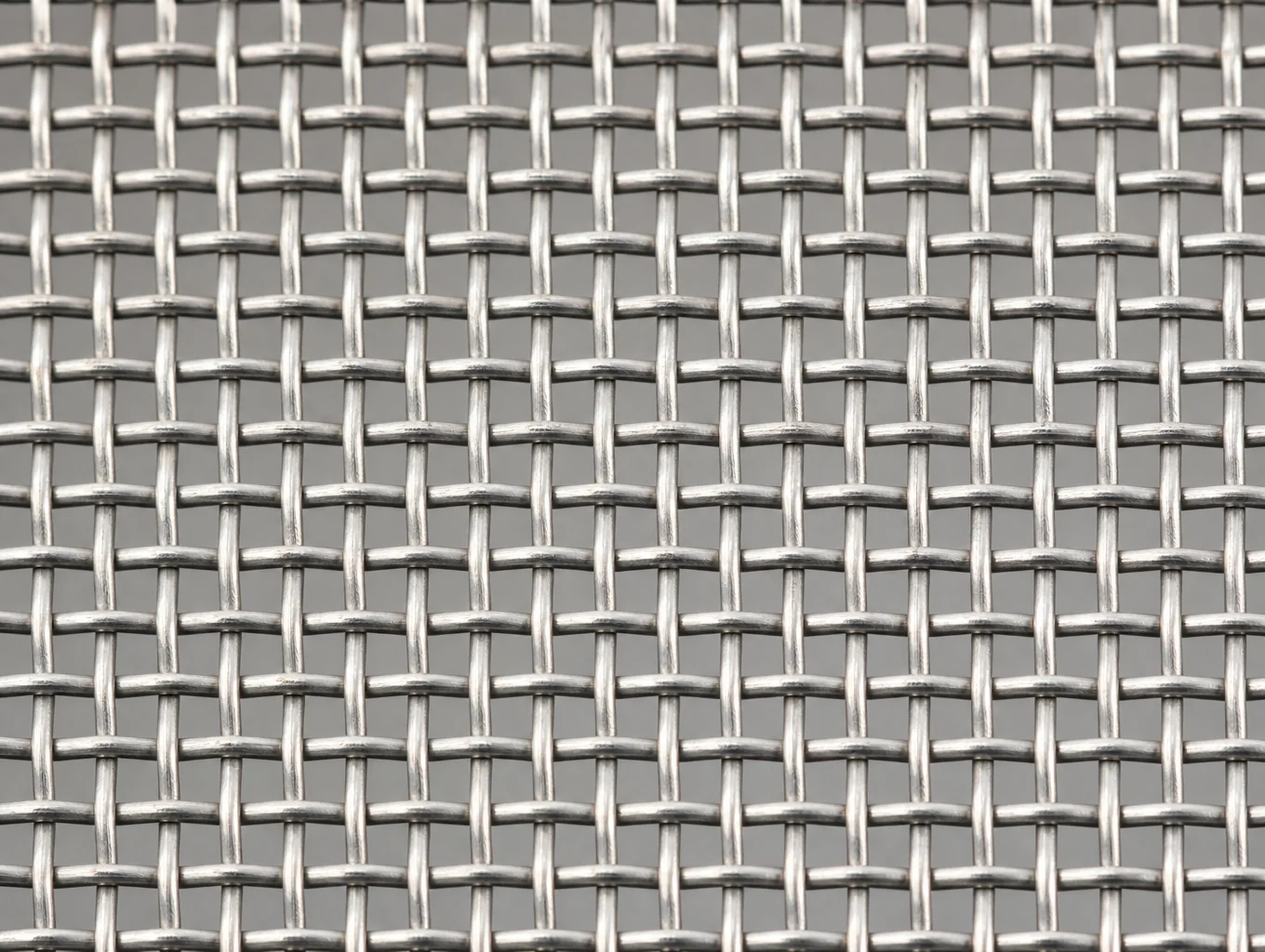

Custom-engineered woven mesh built to your exact specification
Configure aperture geometry, wire diameter, and specialty alloys for high-stress separation, chemical processing, and critical OEM filtration assemblies.
Custom mesh engineering from specification to serial production
Submit your operating parameters, review weave simulations with our metallurgists, and receive certified prototype samples before tooling.
Operating conditions & geometry intake
Share your medium chemistry, target micron cutoff, differential pressure limits (Delta P), flow rate, and mechanical constraints.
- Mesh count & aperture (1–3200 mesh)
- Alloy selection (304L, 316L, 904L, Alloy 20)
- Operating temp (-200°C to +800°C)
Weave topology & flow simulation
Our wire mesh application engineers calculate wire tension, open area ratio, tortuosity, and particle retention curves to prevent premature clogging.
- Plain, Twilled, Dutch or Multipor weave
- CFD permeability & Delta P modeling
- Calendering & sintering feasibility check
Prototype weaving & secondary fabrication
We configure precision loom setups, weave short-run test batches, and perform custom laser cutting, slitting, pleating, or edge stamping.
- Custom slit widths (from 10 mm)
- Ultrasonic cleaned & degreased options
- Sintered multi-layer laminate packs
Optical inspection & certified dispatch
Every production lot is validated against ASTM E2016 and ISO 9044 with bubble point pore testing, PMI material verification, and mill test certificates.
- EN 10204 3.1 Material Test Report (MTR)
- ASTM E2016 aperture tolerance report
- Traceable batch tagging & export crating
Bespoke wire cloth configurations for critical filtration
From single-layer filter discs to high-pressure sintered laminate cylinders, our facilities provide in-house slitting, ultrasonic washing, calendering, and laser welding.
Custom Slit Coils & Strips
Deburred edges with slit tolerances down to ±0.05 mm for automated winding machines.
Multi-Layer Sintered Laminates
Diffusion bonded protective, filtration, and drainage mesh layers up to 7 plies.
Alloy Positive Material Identification
100% XRF spectral confirmation for corrosive chemical and aerospace deployments.
Full Regulatory Compliance
FDA 21 CFR food contact, EC 1935/2004, and RoHS/REACH compliance documentation.
Request your custom mesh quotation
Send your aperture, wire diameter, weave type, and volume requirements. Our engineering team reviews specifications and returns a verified quote within 24 hours.
Custom roll widths, slit coils, and stamped discs
Full EN 10204 3.1 chemical & mechanical test reports
Dedicated technical response within 1 business day
