Filter Cartridges

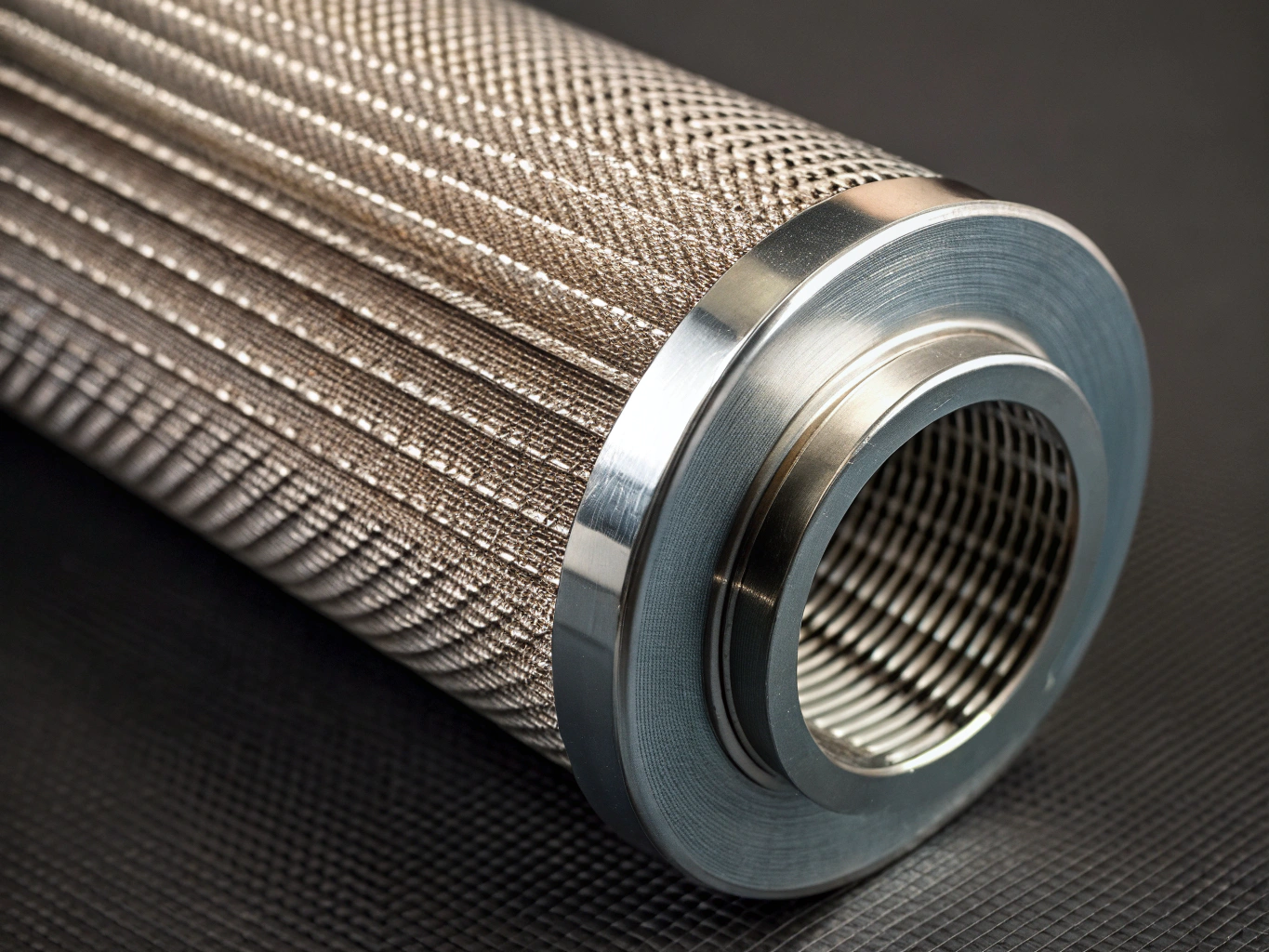

Engineered stainless steel filter elements manufactured for extreme differential pressures, corrosive process fluids, and high-temperature gas or liquid filtration. Custom pleat depths and welded end-fittings tailored to strict OEM configurations.
Filter Element Technology & Micro-Geometry
Engineered mesh pleat architectures, precision end-cap containment, and calculated delta-P characteristics for demanding industrial separation systems.
Pleat Geometry & Manufacturing Tolerances
All filter cartridges are manufactured under rigorously controlled quality processes with precise pleat spacing to prevent pleat collapse under high viscous flow.
| Dimension / Parameter | Standard Range | Tolerance | Application Role |
|---|---|---|---|
| Pleat Height (h) | 8.0 mm – 75.0 mm | +/- 0.25 mm | Standard & high-capacity cylindrical cartridges |
| Pleat Pitch / Density | 12 – 48 pleats/inch | +/- 1 pleat/inch | Optimized for minimal delta-P and cake release |
| Outer Diameter (OD) | 25.0 mm – 350.0 mm | +/- 0.40 mm | Industrial vessel standard housings |
| Inner Core Diameter (ID) | 15.0 mm – 280.0 mm | +/- 0.30 mm | Perforated 304/316 support tube fitment |
| Overall Element Length (L) | 125 mm – 1500 mm | +/- 1.0 mm | Single-length or multi-module configurations |
Standard End Configurations:
- DOE (Double Open End) with flat elastomer gasket
- SOE Code 7 (226 O-ring with 2 locking tabs & spear point)
- SOE Code 3 (222 O-ring with flat closed bottom)
- Threaded NPT / BSP male or female stainless fittings
Require Custom Micron Ratings or Sintered Cartridge Build?
Our engineering team configures exact pleat counts, end caps, and alloy combinations to match your OEM housing dimensions.
Need Custom Filter Cartridge Elements or Sintered Packs?
From bespoke pleating geometries and sintered multi-layer laminate cylinders to precision stamped disc packs, our engineering team assists with drawings, delta P models, and material qualification.
Single or multi-layer pleated filter cylinders, disc packs, and cartridges built to exact drawings.
AISI 304, 316L, 904L, Inconel, and Hastelloy wire meshes rated down to 1 micron nominal/absolute.
Comprehensive material test reports, bubble point testing, and quality compliance documentation.
Need Custom Filter Cartridge Specifications for Your Process?
Share your end-cap configuration, micron retention requirements, or CAD drawings to receive a verified technical quote and feasibility assessment within one business day.
Full EN 10204 3.1 material test certs, 316L/304/Hastelloy alloy validation, and cleanroom packaging.
Pleated or cylindrical wire mesh configurations, custom DOE/222/226 fittings, and reinforced collapse cores.
Comprehensive CAD drawing review, delta P calculations, and verified technical quotes within 24 hours.
