Fabricated Filter ComponentsISO 9044 / ASTM E2016

Fabricated Filter Elements & Components

MutualFilter engineers and manufactures high-performance woven wire mesh screens, discs, multi-layer packs, and custom elements for rigorous industrial separation across chemical, polymer, and fluid systems.

Request a Custom QuoteTechnical Specifications
1 µm – 5 mmAperture PrecisionCalibrated weave openings
304 / 316L / 904LAlloy OptionsCorrosion-resistant grades
100% TailoredCustom FabricationPleated, framed, multilayer
FABRICATION MATRIXOEM / Custom Spec
Precision stainless steel filter components and wire mesh assemblies
100% Dimensional Inspection
Fabrication Formats
Discs, Packs, Pleated & Cylinders
Micron Retention
1 µm to 25 mm Rated
Alloy Metallurgy
AISI 304, 316L, 904L, Hastelloy
Joining Tech
Ultrasonic, Laser & Plasma Welded
MANUFACTURING & QUALITY STANDARDS

Engineered wire cloth, fabricated to your exact tolerance

From metallurgical wire drawing to high-tension shuttleless weaving, each production batch undergoes in-line optical pore verification, ultrasonic degreasing, and ISO/ASTM dimensional inspection.

Precision Weaving & Sintering

Multi-heddle looms weave micro-wire diameters from 0.02 mm with tension calibration across width.

Secondary Converting

Cleanroom stamping, automated slitting, calendering, and ultrasonic welding into custom filter packs.

Optical & Bubble Point QA

Every production lot is measured against pore uniformity and flow differential pressure criteria.

Benchmark Engineering SpecificationsQA Ref: MF-SPEC-2025
Aperture Tolerance
±2 µm
ASTM E2016 / ISO 9044 / GB/T 5330-2025
Laser micrometer verified
Certified Alloys
316L / C-22
DIN EN 10204 3.1 / BS EN 10204
Full heat trace certificates
Cleanroom Compliance
ISO Cl. 7
ASTM G93 Level A
Ultrasonic oil & particle free
Request Custom FabricationView ASTM Testing Protocols
Precision CNC wire mesh loom weaving and automated optical verification in cleanroom environment
FACILITY: CLASS 7
AUTOLOOM VERIFIED
Fabrication Capabilities

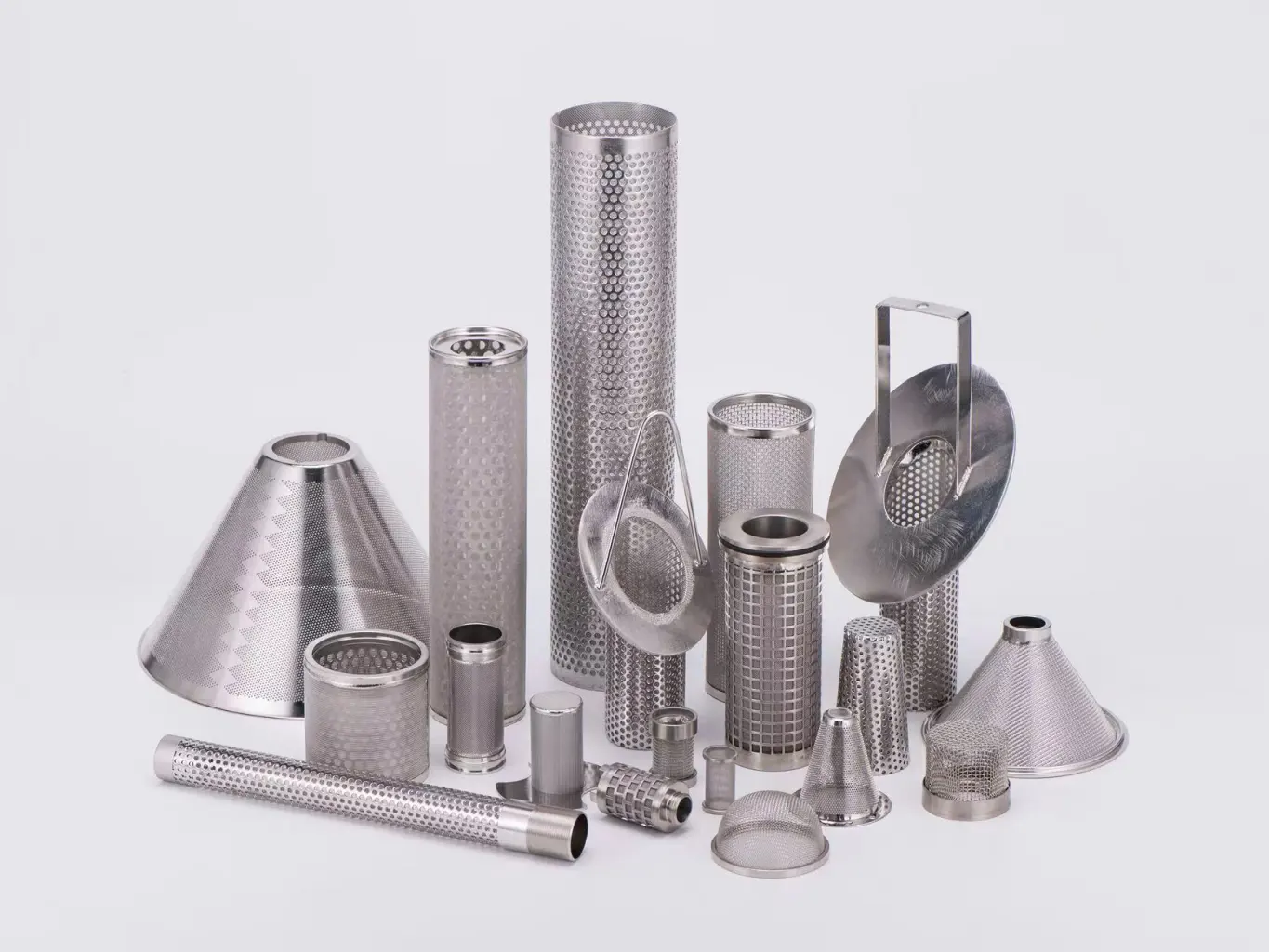

Engineered Component Types

Standard and custom fabricated wire mesh components ready for direct integration into OEM filtration units, extrusion lines, and process equipment.

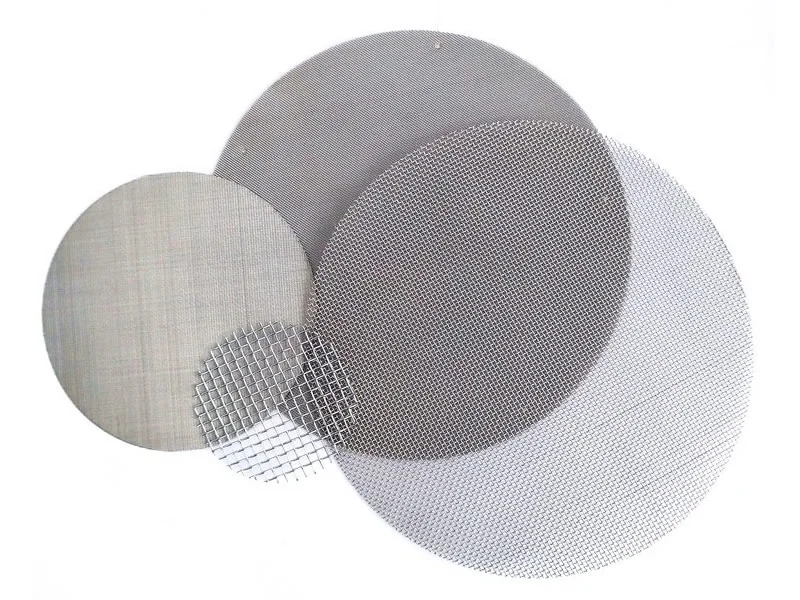

Precision stamped stainless steel wire mesh filter discs
Precision Stamping
Filter Discs
Diameter range: 5mm – 600mm • 304/316L/Alloys

Single and multilayer mesh discs stamped to exact dimensional tolerances with cleanly sealed or raw edges.

Precision welded stainless steel filter tubes and cylinders
Tubular & Cylindrical
Filter Tubes & Cylinders
Diameter: 10mm – 1200mm • Length to 3000mm • 2µm – 500µm

Rigid wire cloth tubes and precision welded or sintered cylindrical elements engineered with perforated support cores or self-supporting mesh for high differential pressures.

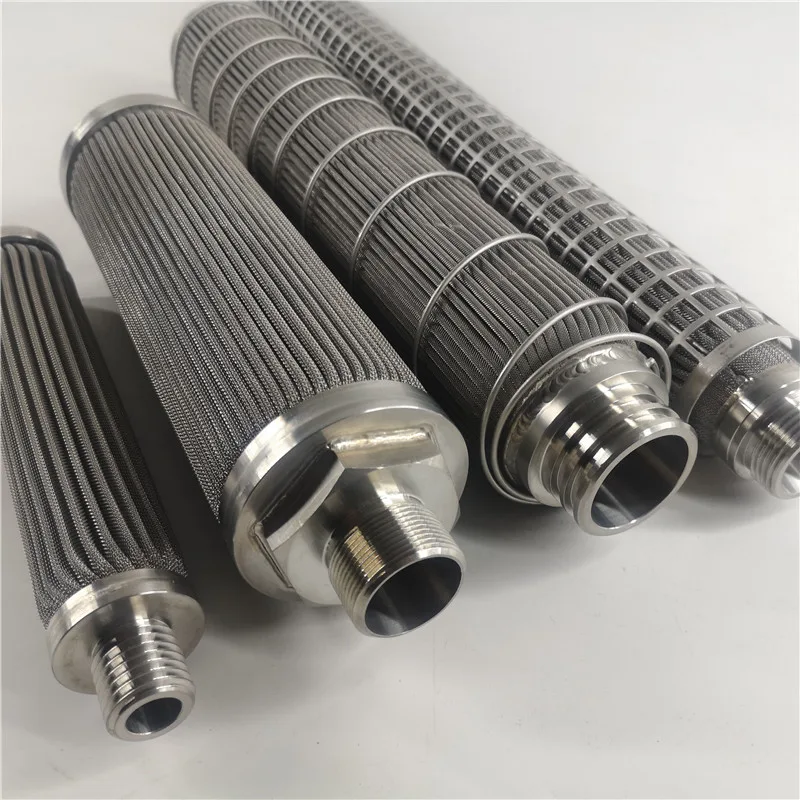

Pleated and sintered stainless steel filter cartridges
Pleated & Sintered
Filter Cartridges
Micron range: 1µm – 250µm • High dirt holding

Pleated high-surface-area and sintered cartridges engineered with precision end fittings and seal configurations.

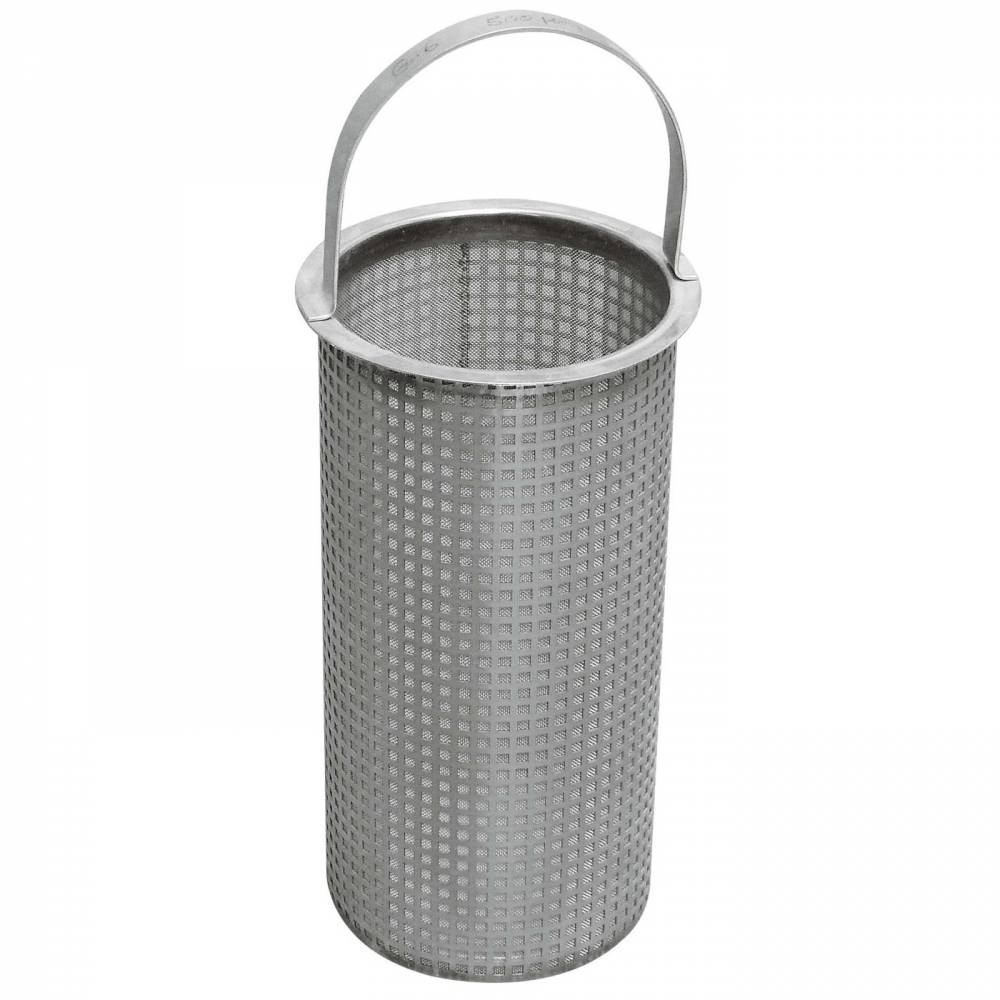

Industrial stainless steel filter baskets and flat plates
Strainers & Flat Panels
Filter Baskets & Plates
Perforated/mesh baskets & flat leaf panels • Custom flanges

Reinforced industrial strainer baskets with solid flanges and rigid multi-layer flat filtration plates engineered for high flow rates and exact aperture retention.

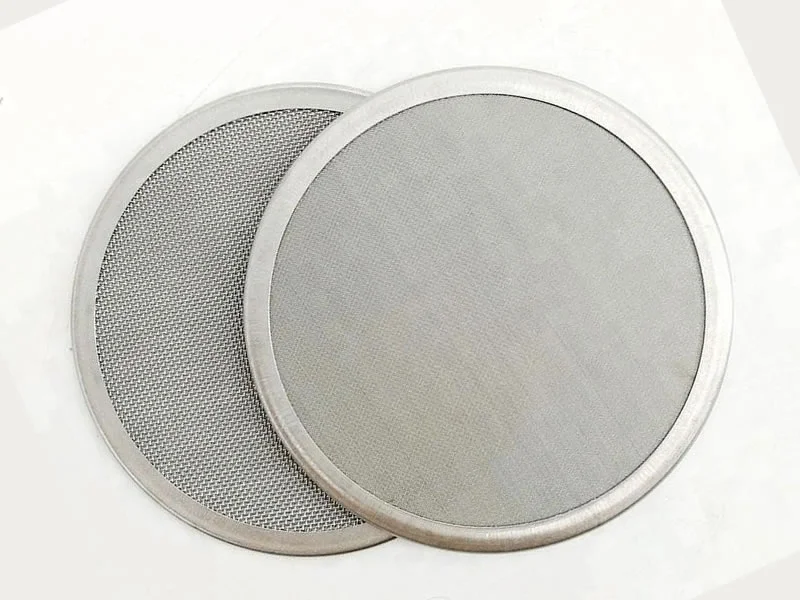

Multilayer rimmed and spot-welded wire mesh filter packs
Multilayer Assembly
Screen Packs
2–7 layer combinations • Extruder-ready

Spot-welded or aluminum-rimmed composite mesh packs combining coarse support with fine micron ratings.

Engineering GuidelinesISO & ASTM Validated

Component Selection Guide

Selecting the ideal wire mesh component requires evaluating operational mechanics, chemical exposure, and geometric boundaries. Use our standard evaluation factors below to specify the correct configuration.

Technical DocsCustom Sizing Quote
1 µm to 1000+ µm
1. Micron Rating & Precision
Identify the exact particle retention cutoff needed for process fluid clarity.
Engineering Rule:Use Twilled Dutch Weaves for < 20 µm; Plain Square Weaves for coarse straining > 100 µm.
View Micron Charts
Permeability vs Pressure
2. Flow Rate & Delta P
Balance open area percentage against differential pressure tolerances.
Engineering Rule:Higher mesh counts restrict throughput. Optimize open area to minimize continuous energy loss.
Delta P Models
-200 °C to 950 °C
3. Operating Temperature
Select alloys that resist thermal oxidation and structural creep at process extremes.
Engineering Rule:SS 304 up to 450 °C; SS 316L for continuous 600 °C; Inconel or Nickel alloys for > 700 °C.
Material Specs
Corrosion Resistance
4. Chemical Compatibility
Prevent chemical pitting, stress cracking, and galvanic corrosion from aggressive media.
Engineering Rule:SS 316L contains 2-3% Molybdenum for superior chloride and acidic resistance over SS 304.
Corrosion Matrix
Housing & Envelope
5. Space & Structural Rigidity
Ensure media fits spatial confines while resisting mechanical deflection under fluid head.
Engineering Rule:Use sintered multilayer laminates where high rigidity is mandatory without external support baskets.
Sintered Laminates
Reusable vs Disposable
6. Cleaning Cycle & Regeneration
Determine if backwashing, ultrasonic washing, or thermal burn-off is required.
Engineering Rule:Surface-loading metallic mesh elements offer 10x longer cycle lifespans than disposable media.
Filter Elements

Rapid Component Type Matching

Summary of common finished geometries based on mechanical requirements

Request Custom Sizing
Component TypeRecommended ApplicationsRetention RangeStructural ConstructionSpecification
Stamped Filter Discs & Slit Coils
Extruder screens, flow regulators, single-layer inline strainers10 µm - 2000 µmSingle or Multi-layer Spot WeldedSpecs
Sintered Wire Mesh Laminates
High-pressure gas/liquid, fluidized beds, polymer melts1 µm - 200 µmDiffusion Bonded 5-Layer CompositeSpecs
Engineered Filter Elements & Packs
Industrial hydraulic systems, chemical reactors, OEM cartridges2 µm - 500 µmPleated / Cylindrical Welded Wire AssembliesSpecs
Custom rim tooling, spot-welding patterns, and multi-layer sintering available for all configurations.
Explore OEM Engineering Capabilities

Need custom wire diameter, non-standard alloy, or complex stamping tolerances?

Technical DocsConsult an Engineer
Fabricated Filter Components

Find Your Ideal Filter Component Solution

Our engineers assist equipment builders and procurement teams in identifying optimal weave patterns, micron ratings, and stainless steel alloys for exacting industrial separation.

Engineering Consultation

Aperture sizing, flow modeling, and alloy selection support.

Custom Formats

Slit coils, stamped discs, cylinder packs, and multi-layer assemblies.

Quality Controlled

Traceable dimensional accuracy aligned with ISO 9044 and ASTM standards.

Request a Technical QuoteSpeak with a Specialist
Strict quality control and fast engineering evaluation for custom requirements.
