Axial slot wedge wire cylindrical screens
Engineered with slot openings parallel to the cylinder axis for high-flow radial filtration. Designed for high solid loading, scraper systems, and heavy-duty separation.
Axial slot cylinder specifications
Engineering parameters, dimensional tolerances, and metallurgy for axial wedge wire screen cylinders.
Continuous slots run parallel to cylinder axis for self-cleaning scrapers and scraper-type automatic backwash filters.
Every profile wire intersection is fusion welded to internal or external support ribs for collapse resistance.
Available with smooth internal surface (FITR) or smooth outer surface (FOTI) with minimal wire deviation.
Machined flange rings, threaded collars, weld rings, and sanitary tri-clamp ferrules integrated to exact specs.
Dimensional & Material Parameters / Dimensions- und Materialparameter
Bilingual engineering specifications conforming to ISO 9044 and ASTM E2016 verification criteria.
Specification Parameter Spezifikationsparameter | Standard Manufacturing Range Standard-Fertigungsbereich | Tolerance / Custom Capability Toleranz / Sonderausführung | Details Hinweis |
|---|---|---|---|
Slot Opening Range Spaltweite / Spaltöffnung | 0.020 mm – 10.0 mm (20 µm – 10,000 µm) Extended: Down to 15 µm upon verification | ±5 µm to ±15 µm (ISO 9044 / ASTM standard) | |
Profile Wire Dimensions Profildraht-Abmessungen | Width: 1.0 – 3.5 mm | Height: 1.5 – 6.5 mm Extended: Heavy-duty wire profiles up to 8.0 mm height | ±0.02 mm wire profile consistency | |
Support Rod Specifications Stützstab-Spezifikationen | Round, teardrop, or flat bar (2.0 – 10.0 mm) Extended: Internal axial ribs or reinforced rings | Pitch 10 mm – 50 mm variable | |
Cylinder Diameter (OD / ID) Zylinderdurchmesser (Außen / Innen) | Ø 20 mm – Ø 1,200 mm (0.78" – 47.24") Extended: Segmented cylinders up to Ø 2,500 mm | Roundness tolerance within 0.5% of diameter | |
Standard Height / Length Standardhöhe / Baulänge | 100 mm – 3,000 mm single section Extended: Up to 6,000 mm with precision joined rings | Straightness < 1.0 mm per meter | |
Standard Alloy Selection Standard-Werkstoffauswahl | AISI 304, 304L, 316, 316L (1.4301 / 1.4404) Extended: 904L, Duplex 2205, Super Duplex 2507 | Full EN 10204 3.1 MTR traceability | |
Specialty & High-Nickel Alloys Sonderlegierungen & Nickelbasis | Hastelloy C-276, C-22, Inconel 625, Monel 400 Extended: Titanium Grade 2, Nickel 200/201 | Positive Material Identification (PMI) verified |
Standard profile wire geometry
Selected V-wire profiles applied in axial screen cylinders for optimum relief angle and mechanical strength.
Need custom slot openings or non-standard diameters?
Our engineering team calculates collapse pressures, slot open area percentages, and recommends ideal profile wires for your flow rate.
Engineered axial slot cylinders for critical separation processes

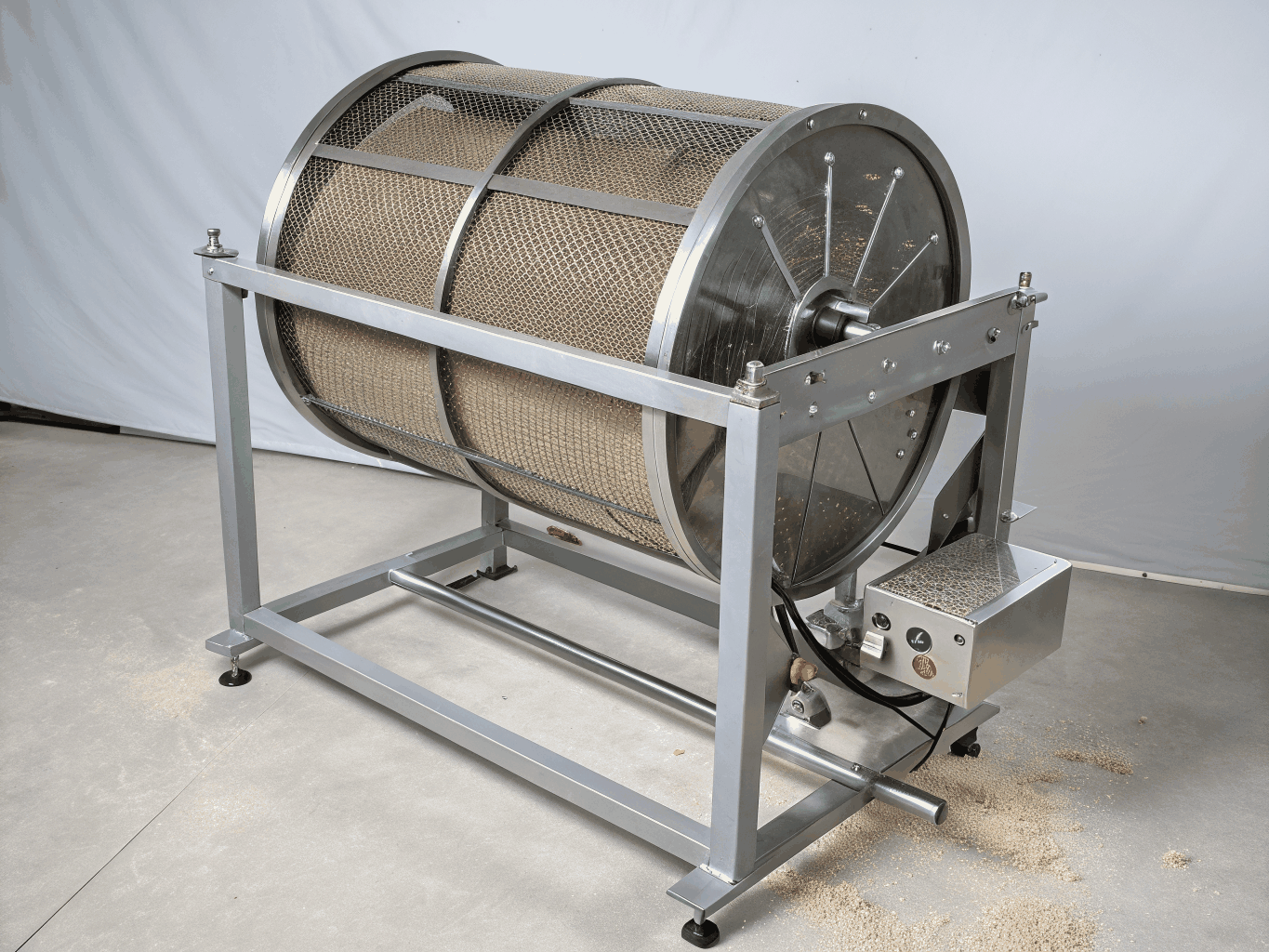

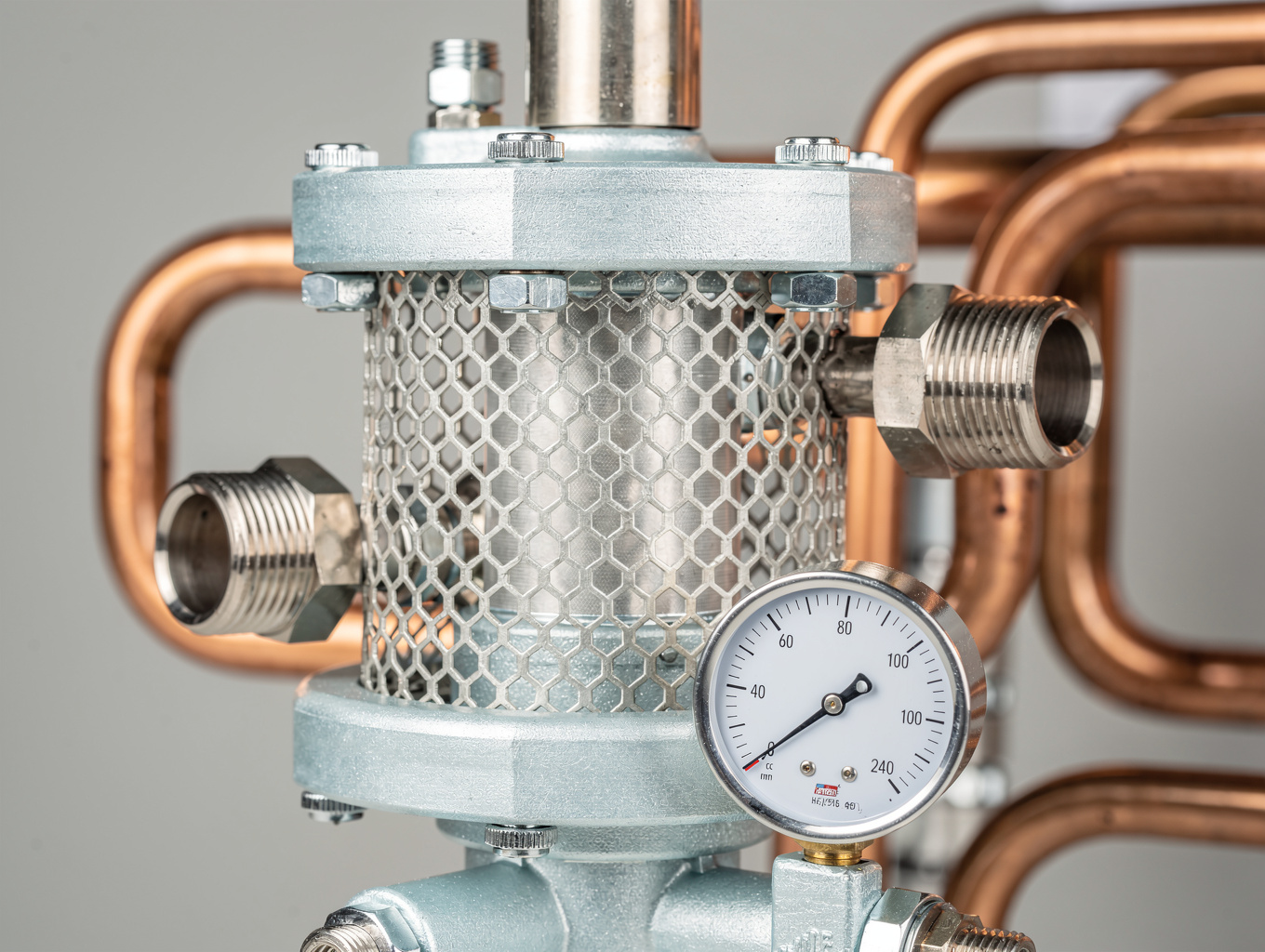

Discover how our continuous slot wire-wound axial cylinders deliver reliable particle retention, low pressure drops, and rapid backwash efficiency across industrial liquid and gas filtration lines.
Custom fabrication & engineering capabilities
Every axial slot cylinder is fabricated to exact client drawings, mechanical loads, and flow rate parameters.
Engineer custom axial slot cylinders to your exact filtration tolerances
Collaborate directly with our filtration specialists on wedge wire profiles, backwash configurations, and custom machined end fittings for rapid quote turnaround.
