Profile-wire screens for continuous-slot filtration, screening, dewatering and separation.
Custom profile wires resistance-welded to rigid support rods provide non-clogging open area, high mechanical strength, and reliable aperture control across water, petrochemical, and mining systems.
Slot openings from 20 μm
Consistent slot accuracy with uniform V-shaped wire profiles.
AISI 304, 316L & duplex
High corrosion resistance for acid, chemical, and marine duty.
Resistance welded strength
Every intersection welded for extreme differential pressure.
Cylinders, flat panels & baskets
Fabricated to exact OEM dimensions and support ring configurations.
Continuous-slot resistance welding for reliable separation.
Each wedge wire cylinder is manufactured by winding cold-rolled V-shaped profile wire helically around an array of longitudinal support rods. An automated resistance welding process applies simultaneous current and pressure at every intersection point.

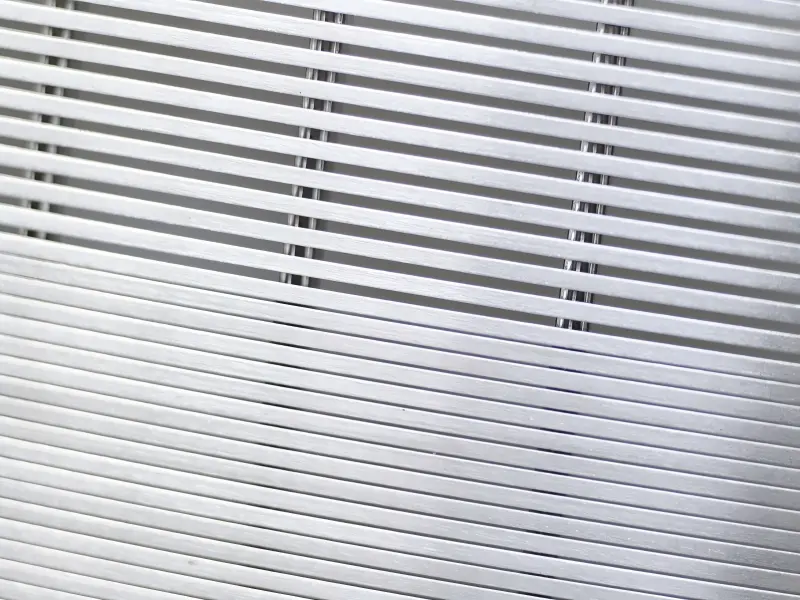

The outward-narrowing V-profile ensures that particles smaller than the slot pass clean through, while retained solids cannot bridge or lodge in the opening. This hydrodynamic geometry reduces differential pressure drop and enables effective backwash cleaning.
Resistance weld fusion between V-wire profile and radial support rods showing zero slag and consistent aperture geometry.
Wedge wire screen categories
Continuous-slot profile wire assemblies manufactured for mechanical separation, dewatering, and media retention. Choose standard geometry or custom engineered profiles.
- Heavy-duty rectangular support framing
- High rigidity under high dynamic g-forces
- Non-blinding continuous triangular slot opening
- Precision concentricity and low runout tolerance
- Internal axial scraper-safe smooth working face
- Reinforced end rings and drive flanging
- High burst and collapse pressure ratings
- Threaded, beveled, or flanged connection ends
- Uniform slot distribution across entire length
- Standard BSP, NPT, or custom threaded stems
- Prevent loss of ion exchange media and sand
- Low backwash resistance and uniform fluidization
Category comparative specifications
| Screen Category | Construction Profile | Aperture Range | Thermal Tolerance | Pressure Capacity | Key Applications |
|---|---|---|---|---|---|

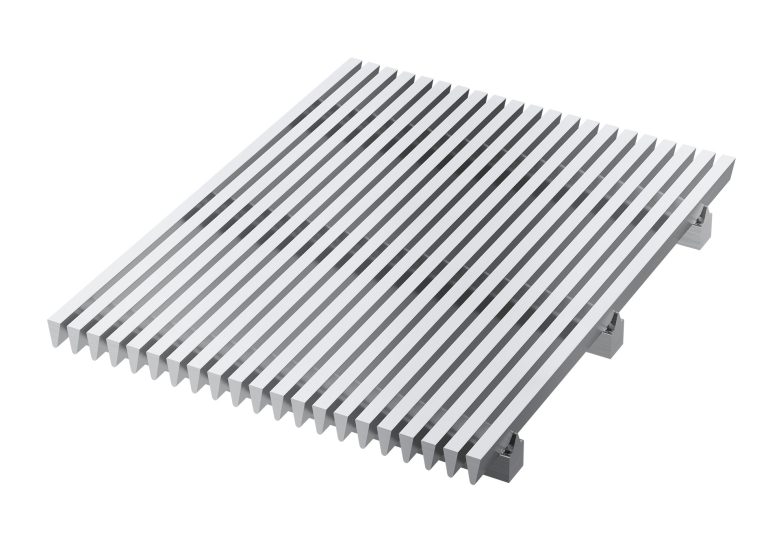

| Flat & Curved Panels | Surface V-wire welded to cross rods | 20 µm – 6.0 mm | 450°C (SS316L) / 600°C (High Alloy) | High mechanical impact load | Vibrating decks, coal dewatering, mining classification |

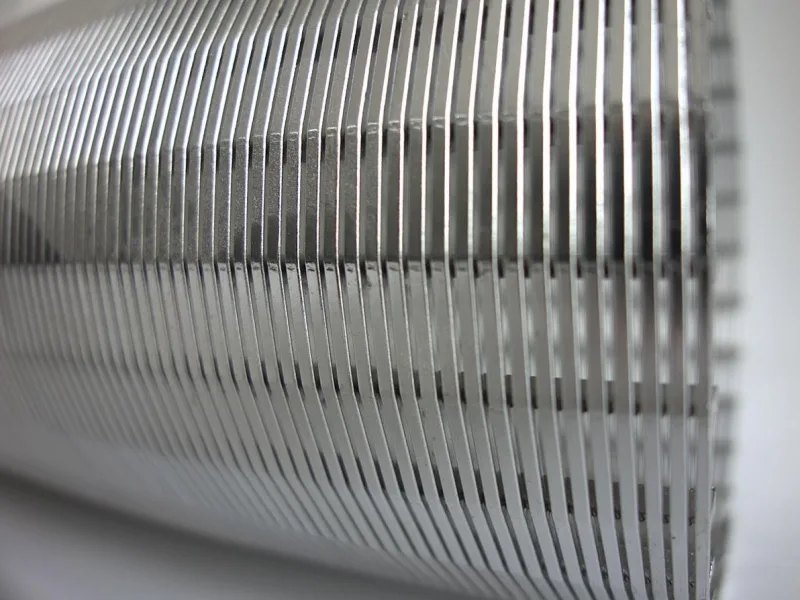

| Cylindrical screens | Axial internal / circumferential outer wire | 25 µm – 10.0 mm | 450°C (Standard) / 750°C (Special) | Up to 35 bar internal differential | Rotary trommels, pulp & paper, sugar processing |
| Screen tubes & laterals | Helical spiral wire over internal ribs | 15 µm – 3.0 mm | 500°C (Standard) / 800°C (Nickel alloy) | Up to 120 bar collapse pressure | Catalyst retention, well filtration, header laterals |
| Filter nozzles & strainers | Welded wedge wire dome & cylinder caps | 0.05 mm – 0.5 mm | 300°C continuous service | Up to 16 bar operating pressure | Ion exchange columns, sand filters, water treatment |
Material selection & alloy compliance
General industrial liquid & solid filtration, standard atmospheric exposure.
Enhanced chemical, acid, and chloride resistance for food, pharma, and marine.
Higher yield strength and resistance to stress corrosion cracking in sour environments.
Extreme resistance to strong oxidizers, wet chlorine, and petrochemical reactions.
Wedge wire screens across industrial filtration processes
Engineered with continuous V-shaped wire profiles fusion-welded to internal or external support rods. Explore practical application profiles across key sectors or submit custom fabrication criteria.
Request a Wedge Wire Technical Quote
From custom cylindrical screens and flat sieve panels to complex reactor internals, our metallurgical engineering team supplies tailored wedge wire assemblies with certified slot tolerances and full material traceability.
Continuous aperture spacing with micron tolerances across the entire cylindrical surface.
Profile wire fused directly to internal support rods without filler metal or solder joints.
Resistant to aggressive chemical solvents, high chlorides, and continuous backwashing cycles.
