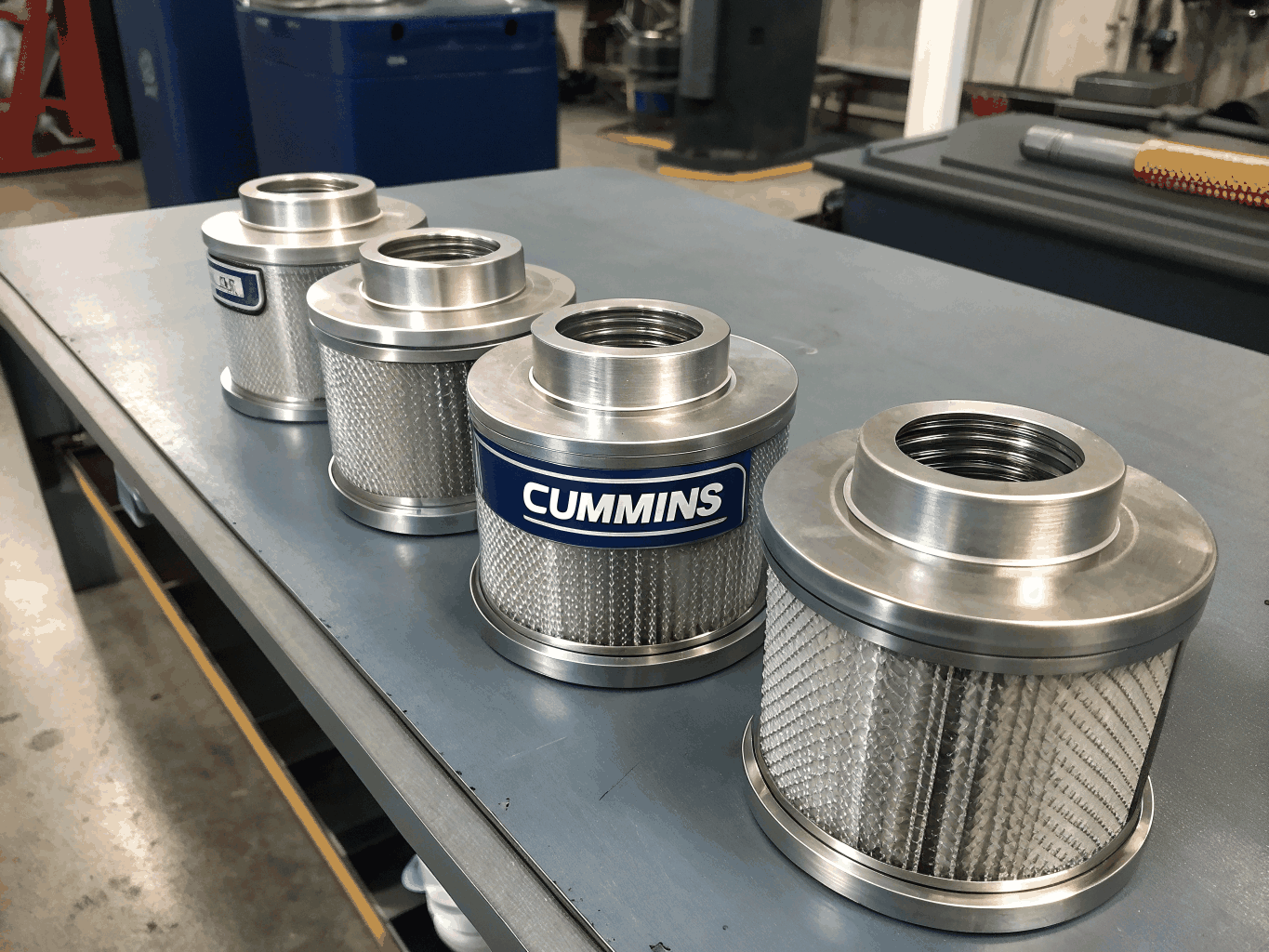

Cylindrical filter screens built for high pressure and heavy flow.
Reinforced stainless steel cylinders engineered with precision seams to resist collapse under demanding industrial filtration cycles.
Reinforced core support handles differential pressure spikes up to 45 bar.
Plasma and resistance longitudinal welds ensure zero particulate bypass.
Fabricated in 304, 316L, and 904L stainless steel for corrosive liquid streams.
Fabricated to exact OEM drawing tolerances
Axial, circumferential & multi-layer configurations
Cylindrical screen specifications
Review standard dimensions, slot openings, alloy ratings, and differential pressure thresholds for industrial process cylinders.
| Model series | Outer dia. (OD) | Length (OAL) | Wire dia. | Opening range | Collapse ΔP |
|---|---|---|---|---|---|
| MF-CS-025 | 25 – 50 mm | 100 – 600 mm | 0.08 – 0.25 mm | 20 – 150 µm | 25 bar |
| MF-CS-075 | 50 – 100 mm | 200 – 1200 mm | 0.15 – 0.50 mm | 40 – 300 µm | 35 bar |
| MF-CS-150 | 100 – 250 mm | 300 – 2000 mm | 0.25 – 0.90 mm | 75 – 600 µm | 45 bar |
| MF-CS-300 | 250 – 500 mm | 500 – 3000 mm | 0.40 – 1.40 mm | 100 – 1200 µm | 60 bar |
| MF-CS-600 | 500 – 900 mm | 1000 – 4500 mm | 0.60 – 2.00 mm | 250 – 2500 µm | 70 bar |
Need custom length, non-standard end fittings, or high-pressure internal ribs?
Get custom cylinder quoteDedicated slot orientation configurations
Choose between longitudinal axial slots or continuous circumferential wound profiles engineered for specific flow patterns and mechanical cleaning mechanisms.
Explore supplementary engineering data
Access aperture-to-micron conversion formulas, Delta P differential pressure models, and material corrosion matrices.
Engineered for demanding separation tasks
Examine how MutualFilter cylindrical wire mesh screens, filter baskets, and sintered cartridges deliver reliable particle retention across high-capacity industrial operations.
Typical Process Deployments
Engineering Matrix
Rigid cylindrical construction resists collapse during high-flow backwash cycles, extending element service intervals up to 400%.
Universal structural advantages
Every cylindrical screen fabricated by MutualFilter meets tight dimensional tolerances and rigorous weld integrity checks.
Uniform pore distribution maintains high open area, keeping initial differential pressure low even under heavy continuous volume.
Reinforced internal support cores and resistance-welded seams prevent collapse under surge pressure and mechanical scraping.
Solid stainless steel wire mesh handles ultrasonic cleaning, thermal burn-off, and chemical washes for repeated operational cycles.
Need Custom Cylindrical Screens or Filter Cartridges?
From custom diameter single-layer cylinders and perforated core supports to pleated mesh cartridges and precision sintered tubes, our metallurgical engineering team delivers complete drawing validation and ASTM/ISO certified manufacturing.
Diameter & length verified to ±0.05 mm standard.
EN 10204 3.1 chemical & tensile mill certificates.
TIG, micro-plasma, or resistance welded longitudinal joints.
