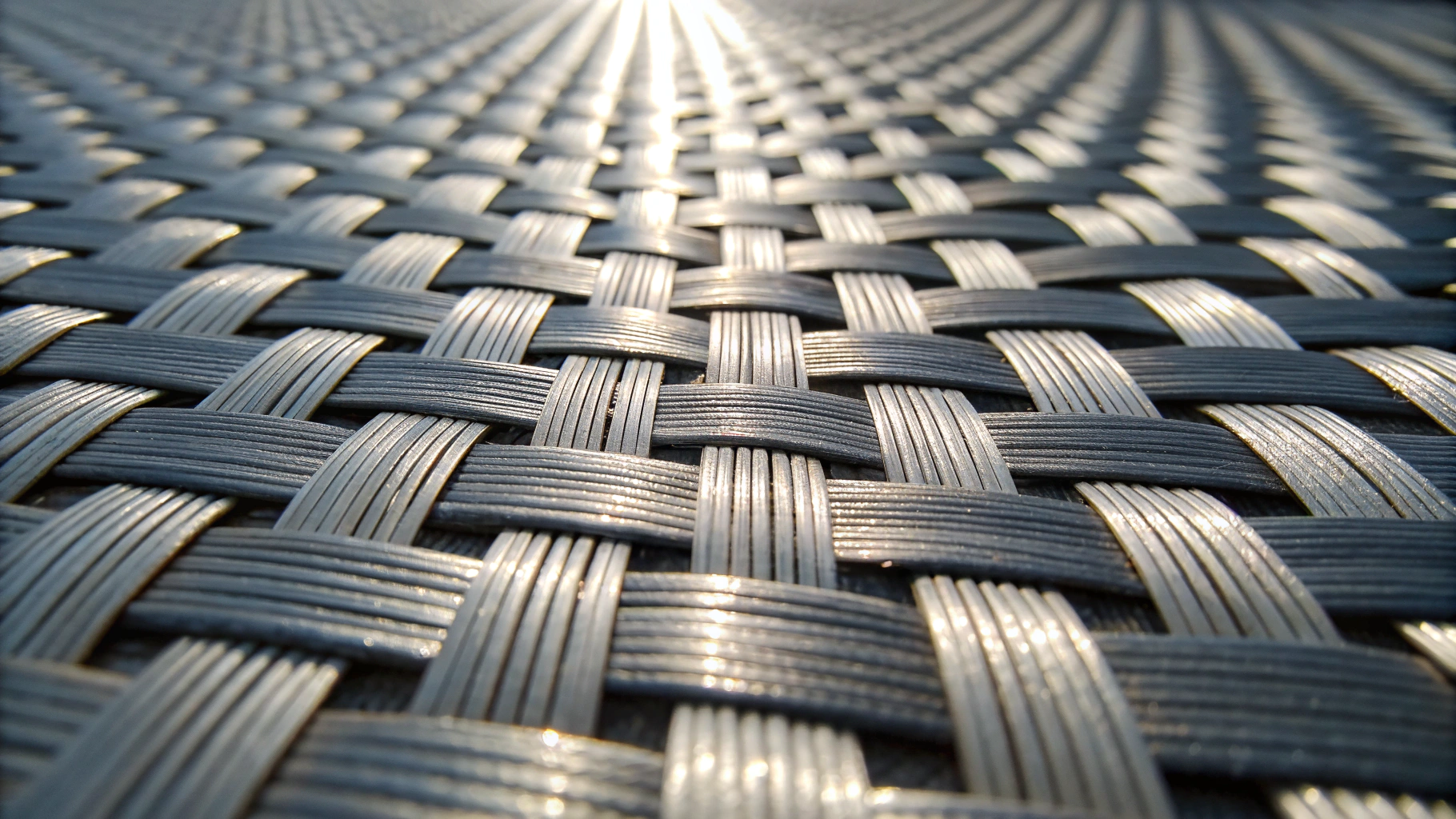

Engineered Sintered Wire Mesh for Critical Industrial Filtration
Achieve absolute micron control, unyielding pore stability, and superior structural strength with MutualFilter custom diffusion-bonded stainless steel multi-layer laminates.
Atomic-level bonding for demanding filtration environments
Through high-temperature vacuum sintering, solid-state diffusion fuses overlapping wire contact points without filler alloy. The resulting unified matrix locks wire positions in place, producing permanent micron ratings and eliminating media migration in critical processes.
Mechanical integrity
Maintains fixed aperture geometry and structural rigidity under high differential pressures exceeding 20 MPa.
Accurate pore stability
Pre-aligned multi-layer laminate prevents wire displacement and bypass during cyclic flow and high-pressure backwashing.
Thermal & chemical resistance
Constructed from 316L stainless steel or nickel alloys, rated for continuous operational exposure up to 600°C.

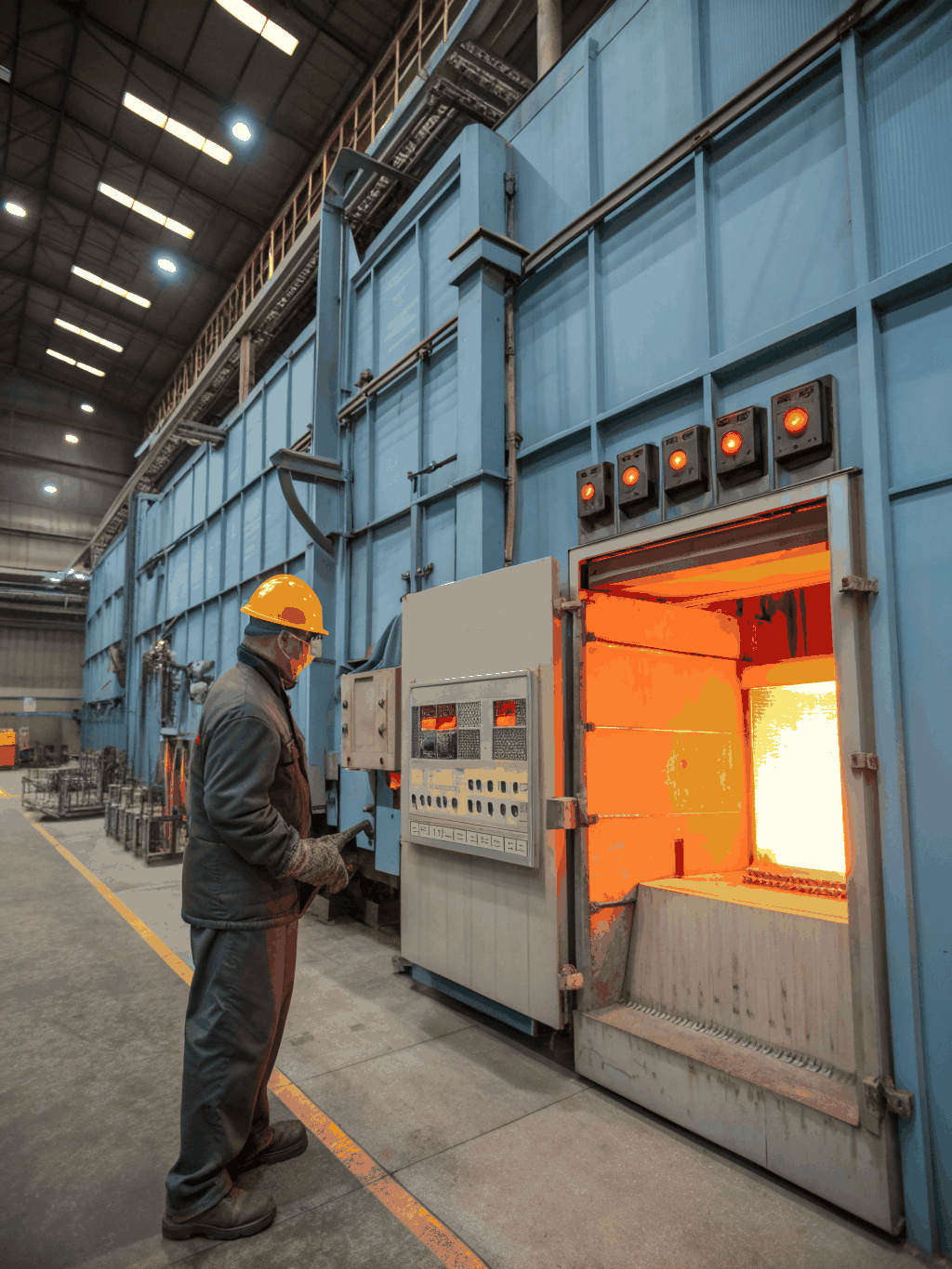

FIG 1.1: Multi-layer matrix sintering under high vacuum thermal treatment

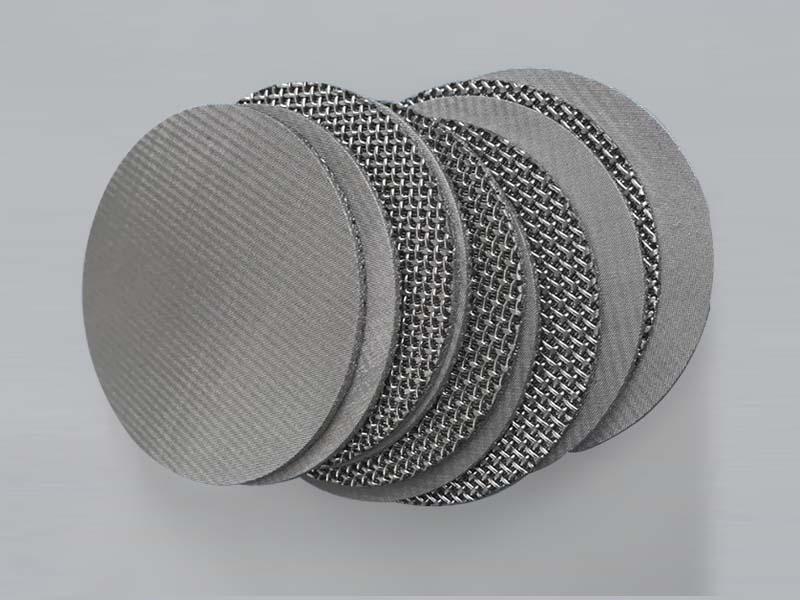

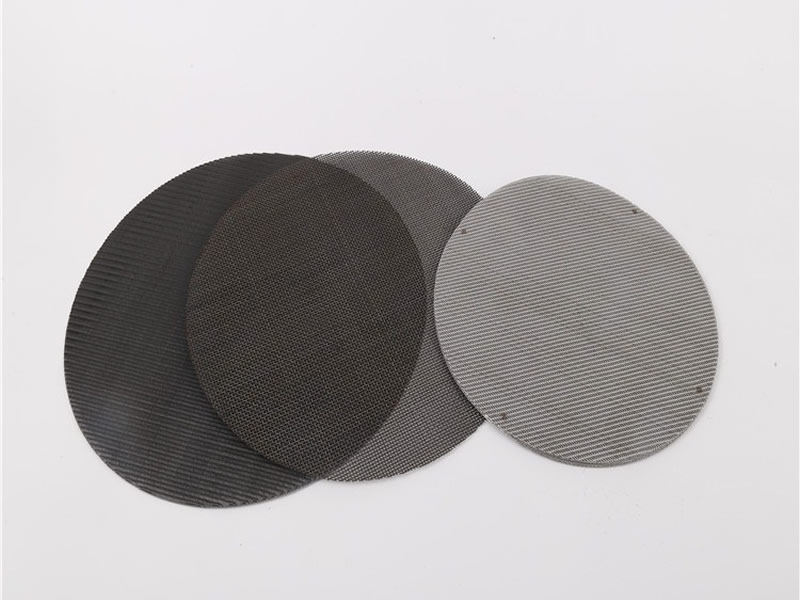

Sintered Wire Mesh Configurations
Diffusion-bonded wire mesh laminates offer rigid pore stability, exceptional mechanical strength, and repeated backwash cleanability for critical process filtration.
Need custom mesh bonding or specific alloy grades?
We fabricate sintered laminates in AISI 316L, 304L, Alloy 20, Hastelloy C-22, and Monel 400.
Engineered Sintered Mesh Advantages & Performance Metrics
Vacuum-sintered multi-layer stainless steel wire laminates provide structural strength, precise micron control, and extended service life in critical industrial filtration applications.
Performance & Operational Specification Matrix
Click any parameter to highlight operational ratings and mechanical mechanisms
| Feature / Parameter | Operational Metric | Engineering Mechanism & Advantage | Status |
|---|---|---|---|
Mechanical DurabilitySolid-State Diffusion Bonding | Up to 300 barDifferential Pressure | Diffusion bonding permanently fuses wire contact points, eliminating wire shifting and media migration under high operating pressures and intense reverse pulses. | Standard |
Pore Size PrecisionAbsolute Micron Accuracy | 1 µm – 200 µmCalibrated Rating | Calibrated multi-layer construction delivers rigorous pore aperture distribution and uniform micron ratings ranging from 1 micron up to 200 microns. | Standard |
Thermal StabilityCryogenic to Extreme Heat | -200°C to +600°CContinuous Operation | Retains high mechanical rigidity and structural integrity across broad operational temperature spans, preventing warping or aperture distortion. | Standard |
Chemical ResistanceAISI 316L & Specialty Alloys | 316L / 904L / Alloy 22Standard Alloys | Engineered from corrosion-resistant alloys including 316L, Hastelloy, Monel, and Inconel to withstand aggressive acids, caustics, and harsh industrial solvents. | Standard |
Flow PerformanceOptimized Delta-P Flow | Low ΔPOptimized Flow Dynamics | Engineered laminar pore geometry maintains consistent permeability, stable flow dynamics, and low initial pressure drop over long filtration duty cycles. | Standard |
Cleanable & ReusableExtended Service Lifecycle | 100% BackwashableLifecycle Savings | Surface-filtration properties and rigid multi-layer structure enable thorough backflushing, ultrasonic cleaning, and chemical washing for repeat cycle usage. | Standard |
Bubble Point Micron Verification
ASTM F316 test protocols verify absolute pore distribution and bubble-point integrity across every sintered plate.
Full Material Traceability
EN 10204 3.1 inspection certification and Positive Material Identification (PMI) are available when specified in the order.
Alloy & Heat Treatment
Need custom 2-to-7 layer laminates or sintered porous disc elements? Talk with our engineering team.
Discover Sintered Wire Mesh Solutions

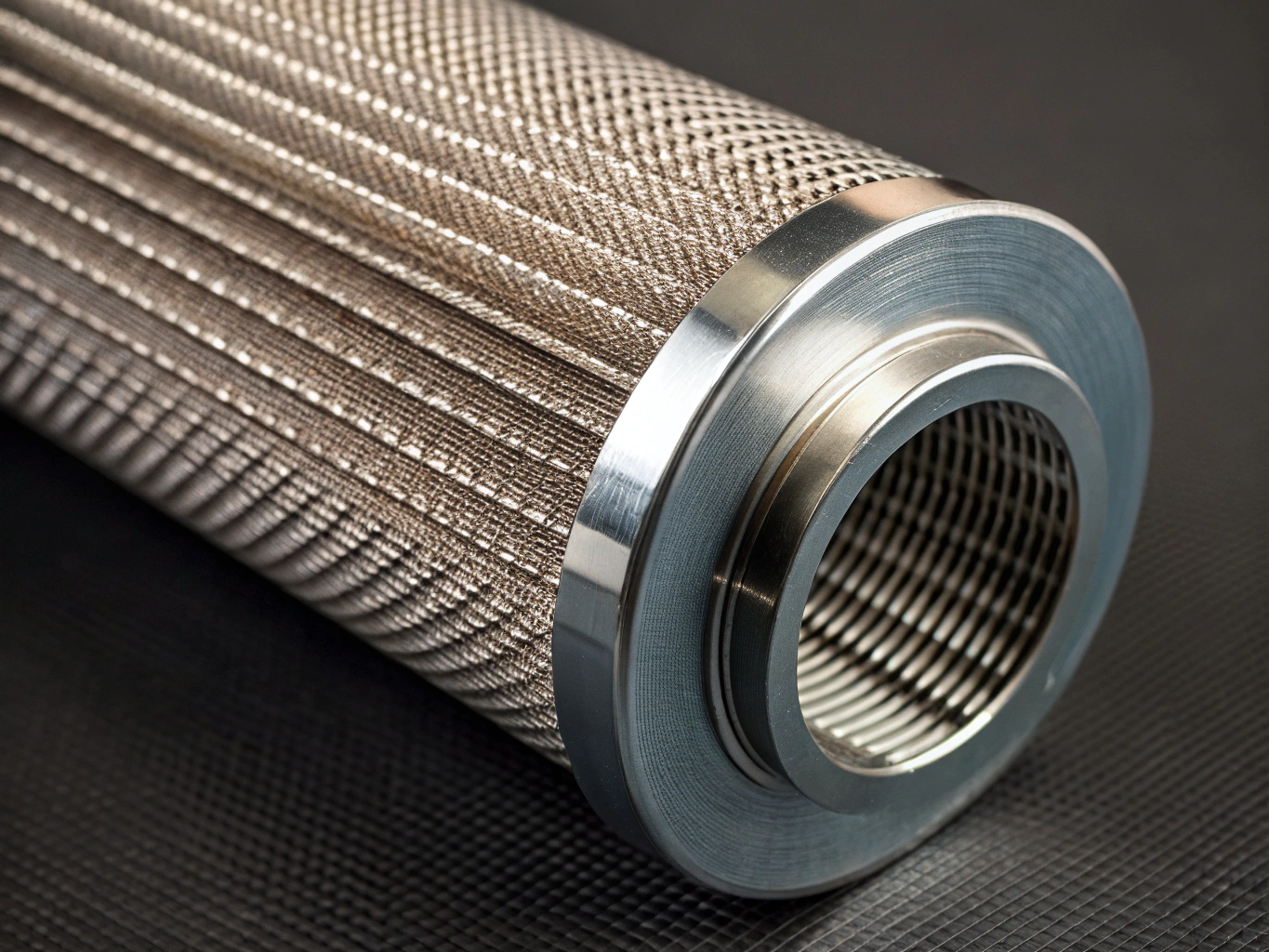

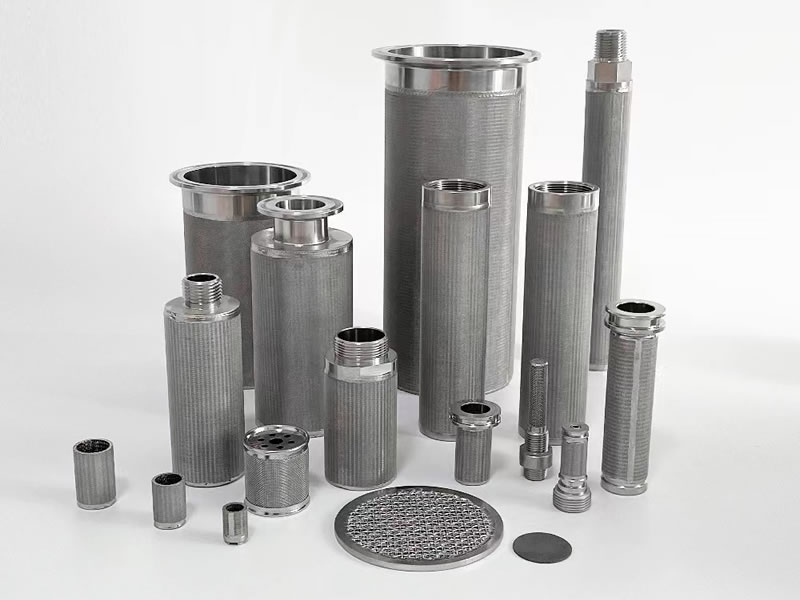

Elevate process reliability with diffusion-bonded multi-layer stainless steel mesh. We produce custom sintered discs, seamless filter elements, and porous plates engineered to your exact filtration rating and differential pressure demands.
