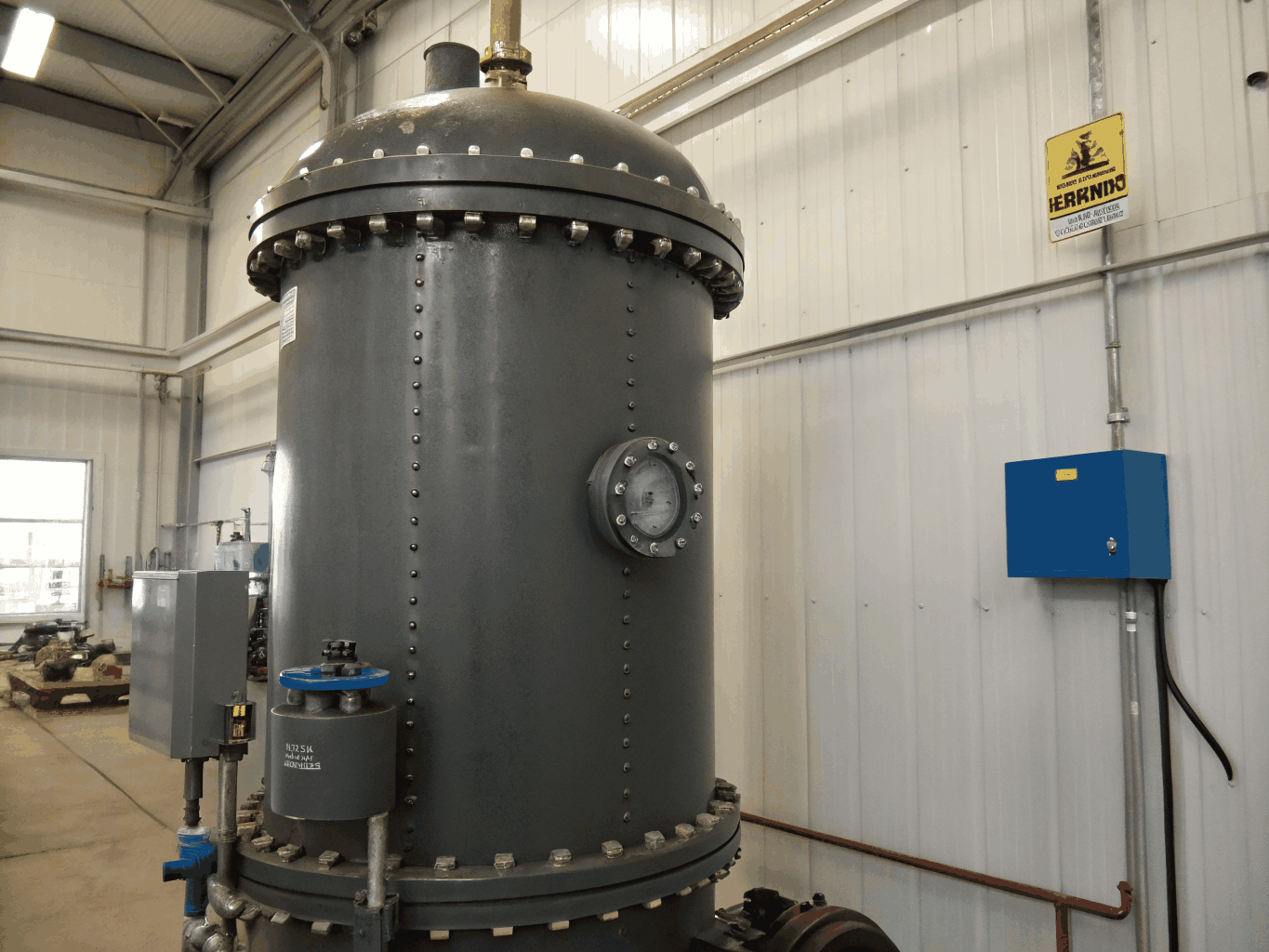

Wedge wire candle filter elements for high-pressure separation.
Engineered for catalyst recovery, pre-coat filtering, and high-differential-pressure vessel internals. Continuous slot profiles deliver laminar flow, rapid pulse backwashing, and zero media migration under critical thermal cycles.
Out-to-In (FOTI) & In-to-Out
99.4% Cake Discharge
Wedge wire screen tube specifications
Review slot openings, wire geometries, tube diameters, and connection fittings for custom industrial filtration assemblies.
| Parameter / 参数 | Metric (SI) | Imperial (US) | Tolerance / 公差 | Engineering Note |
|---|---|---|---|---|
Slot Opening Range 缝隙尺寸范围 | 20 μm – 6,000 μm (0.02 – 6.0 mm) | 0.0008" – 0.2362" | ±5 μm (precision) / ±15 μm (std) | Continuous slot, non-clogging V-wire geometry |
Outer Diameter (OD) 外径规格 (OD) | Ø 19 mm – Ø 1,200 mm | 0.75" – 47.24" | ±0.5 mm to ±1.5 mm | Custom mandrel diameters available on request |
Single Tube Length 单支长度 | Up to 6,000 mm (seamless) | Up to 236.2" (19.68 ft) | ±2.0 mm | TIG welded spliced sections for extended lengths |
Flow Direction 流向设计 | FOTI (Out-to-In) / FITO (In-to-Out) | External / Internal surface filtration | Standard / Inverted | Radial external wire or axial internal wire configuration |
Collapse Pressure Rating 抗压/爆破强度 | 1.0 MPa – 35.0 MPa | 145 psi – 5,075 psi | Per engineering design | Reinforced support rod pitch determines structural load |
Surface Finish 表面处理 | Pickled, Passivated, Electropolished | Ra 0.4 μm – 1.6 μm | ISO 4287 compliant | Ultrasonically cleaned for sanitary and pharmaceutical use |
Quality Control & Inspection Standard (检验与公差控制)
All MutualFilter wedge wire screen tubes undergo 100% optical slot inspection, hydrostatic pressure testing up to rated collapse values, and PMI (Positive Material Identification) spectrometer verification before dispatch. Every shipment includes EN 10204 3.1 inspection certification.
Related Screen Products
Engineered wedge wire applications for industrial processing
Continuous-slot wedge wire tubes provide non-clogging solid-liquid separation, high collapse resistance, and precision micron ratings for demanding operational environments.
Specs: Slot sizes: 20 µm – 3000 µm | 304L, 316L, Super Duplex
Specs: Pressure tolerance: up to 350 bar | Custom flange ends
Specs: Electropolished finishes | Precise slot tolerance ±0.015mm
Specs: Diameters: 25 mm – 1500 mm | Lengths up to 6000 mm
Need custom wedge wire tubes tailored to your specs?
Our engineering team assists with slot sizing, profile wire selection, support rod geometry, and end-fitting fabrications.
Engineered for extreme differential pressures & precision separation
Fabricated to your exact profile wire, slot aperture, and cylinder diameter requirements with full material test reports and quick engineering delivery.
