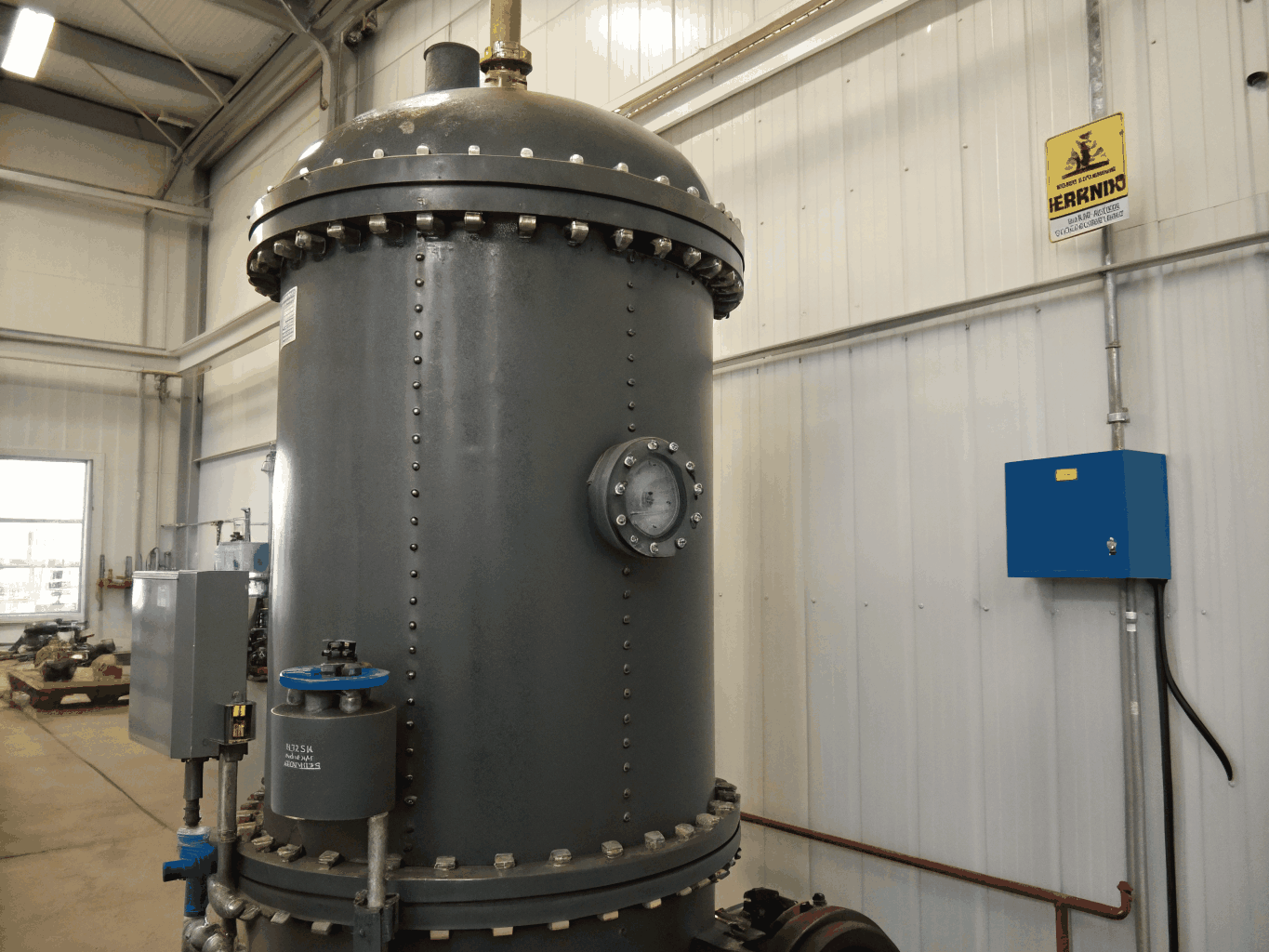

Rigid wire cloth tubes for industrial filtration
Custom-welded stainless steel filter cylinders engineered with precision diameters from 10 mm to 1,200 mm and filtration ratings down to 2 µm. Built for liquid straining, polymer processing, and gas particulate removal under extreme mechanical loads.
Engineered mesh specifications and tolerances
Review standard dimensions, pressure limits, and alloy grades across our industrial filtration media. All configurations adhere to verified international testing protocols.
| Configuration Type | Mesh / Structure | Micron Rating (Nom / Abs) | Diameter / Width Range | Wall / Wire Gauge | Standard Alloys | Bonding / Joint | Max Rating | Standards |
|---|---|---|---|---|---|---|---|---|
Square Mesh (Plain / Twill)woven mesh | 2 to 635 Mesh | 25 um to 10.0 mm | Rolls up to 2,000 mm W | 0.02 mm to 2.5 mm Wire | SS 304, 304L, 316, 316L, 321 | Precision Woven / Resistance Seam | Up to 2.5 MPa (Supported) | ASTM E2016, ISO 9044 |
Plain Dutch Weavewoven mesh | 10 x 64 to 80 x 700 Mesh | 10 um to 300 um | Rolls up to 1,500 mm W | 0.08 mm to 1.2 mm Wire | SS 304L, 316L, 904L, Alloy 20 | Dense Weft / Plasma Edge Weld | Up to 5.0 MPa | ISO 4783, ASTM E2016 |
Twill Dutch Weavewoven mesh | 20 x 250 to 500 x 3500 Mesh | 1.0 um to 80 um | Rolls up to 1,220 mm W | 0.025 mm to 0.6 mm Wire | SS 316L, 904L, Hastelloy C276 | Double Weft / TIG Longitudinal | Up to 6.5 MPa | ISO 9044 Class A |
Reverse Dutch Weavewoven mesh | 72 x 15 to 325 x 39 Mesh | 10 um to 150 um | Coils 100 mm to 500 mm | Heavy Warp Reinforcement | SS 304, 316, 316L, Monel 400 | High-Tensile Warp Continuous | Up to 8.0 MPa | DIN ISO 9044 |
5-Layer Sintered Wire Meshsintered mesh | Custom Laminate System | 1.0 um to 200 um | Sheets up to 1,200 x 1,000 mm | 1.7 mm Standard (1.0-3.5 mm) | SS 316L, SS 304, Hastelloy C22 | High-Temp Vacuum Sintering | Up to 10.0 MPa (Rigid) | ISO 2942, ASTM F316 |
3-Layer Sintered Laminatesintered mesh | Fine Mesh + Perforated Plate | 5 um to 150 um | Sheets up to 1,000 x 1,000 mm | 2.0 mm to 4.5 mm | SS 304, SS 316L, 2205 Duplex | Vacuum Diffusion Bonding | Up to 12.5 MPa | ISO 4572, ASTM E128 |
Sintered Metal Fiber Feltsintered mesh | Non-Woven Micro-Fiber Grid | 0.5 um to 60 um | Sheets up to 1,180 x 1,500 mm | 0.35 mm to 1.2 mm | SS 316L, Inconel 600, Fecralloy | Solid-State Diffusion Sintering | Up to 4.0 MPa (High Porosity) | ISO 16889, ASTM F795 |
Sintered Screen TubesCylinder / Cartridge | Multilayer Cylindrical Filter | 2.0 um to 150 um | OD 18 mm to 650 mm | 1.5 mm to 5.0 mm | SS 304L, 316L, Duplex 2205 | TIG Full Penetration + Sinter | Burst: 15.0 MPa / Collapse: 10.0 MPa | ISO 2941, ISO 2943 |
Perforated Core Filter CartridgesCylinder / Cartridge | Pleated or Wrapped Woven Wire | 5.0 um to 500 um | OD 25 mm to 400 mm / L to 1500 mm | Core 0.8 mm to 3.0 mm | SS 304, 316L, Titanium Gr.2 | Plasma Seam & Endcap Fusion | Collapse: 6.0 MPa | ISO 3724, ASTM E2016 |
Wedge Wire Screen CylindersCylinder / Cartridge | Slot: 20 um to 3000 um | 20 um to 3000 um | OD 25 mm to 1,200 mm | Profile Wire 1.0 mm to 4.5 mm | SS 304, 316L, Super Duplex 2507 | Continuous Resistance Helical Weld | Up to 20.0 MPa (High Radial Load) | ISO 9044, API 5CT / 19C |
AISI 304 / 304L (1.4301 / 1.4307)
Up to 550 CGeneral industrial filtration, food contact, cost-effective standard.
AISI 316 / 316L (1.4401 / 1.4404)
Up to 650 CMolybdenum enriched for enhanced resistance to pitting and chlorides.
Duplex 2205 / Super Duplex 2507
Up to 300 CDouble yield strength of standard austenitics; superior stress-corrosion.
Hastelloy C-276 / C-22
Up to 800 CExceptional resistance to hot contaminated mineral acids and wet chlorine.
Standard Specification for Industrial Woven Wire Cloth
Governs mesh opening tolerances, wire diameter limits, and physical requirements.
Industrial Wire Cloth – Technical Requirements and Testing
Defines international aperture uniformity, class A/B tolerances, and test methods.
Filter Elements – Bubble Point & Multi-Pass Filtration
Verifies micron rating integrity, structural collapse resistance, and dirt retention.
Download complete engineering datasheets and CAD profiles
Includes wire diameter tolerances, delta-P flow velocity calculations, and standard flange configurations.
Engineered filter tubes for demanding operating environments
Match pore geometries and alloy grades to your exact operating pressures, media chemistry, and thermal requirements.
Standard Alloys
316L, 904L, Alloy 20, Hastelloy C-276
Slot / Aperture
50 to 800 microns
Key Capabilities
- Anti-plugging continuous slot geometry
- High mechanical burst & collapse resistance
- Sour service (H2S) corrosion resistance
Standard Alloys
304, 316L, Super Duplex 2507
Slot / Aperture
100 to 3,000 microns
Key Capabilities
- Uniform slot spacing for predictable delta P
- Backwashable wire profiles
- Marine fouling and cavitation resistance
Standard Alloys
316L, Titanium Gr. 2, Monel 400, Inconel 625
Slot / Aperture
2 to 150 microns
Key Capabilities
- Zero media migration under pressure surges
- Non-reactive surface passivation
- Custom end fittings and machined flanges
Standard Alloys
304, 316L (Electro-polished)
Slot / Aperture
20 to 500 microns
Key Capabilities
- Smooth, crevice-free CIP/SIP cleanable surfaces
- Strict compliance with food contact standards
- Uniform flow distribution during batch straining
Custom Cylinder Geometry & OEM End-Fittings
We manufacture screen tubes in lengths up to 6 meters, with options for threaded connectors, NPT adapters, sanitary flanges, and reinforcing support cores.
Need Custom Filter Tubes or Cylindrical Screen Assemblies?
Send your dimensional parameters, target micron ratings, collapse pressure requirements, and end-fitting specifications directly to our engineering team for technical validation and volume pricing.
Full EN 10204 3.1 inspection certs, positive material identification (PMI), and traceable heat lot control.
Perforated core supports, multi-layer sintered mesh cylinders, seam-welded tubes, and custom end fittings.
Fast CAD drawing evaluation, differential pressure calculations, and detailed technical quotes within 24 hours.
