Heavy-duty wire mesh for severe abrasion and structural loads
High-tensile stainless steel & alloy screens engineered for aggregate grading, mineral sizing, and industrial screening

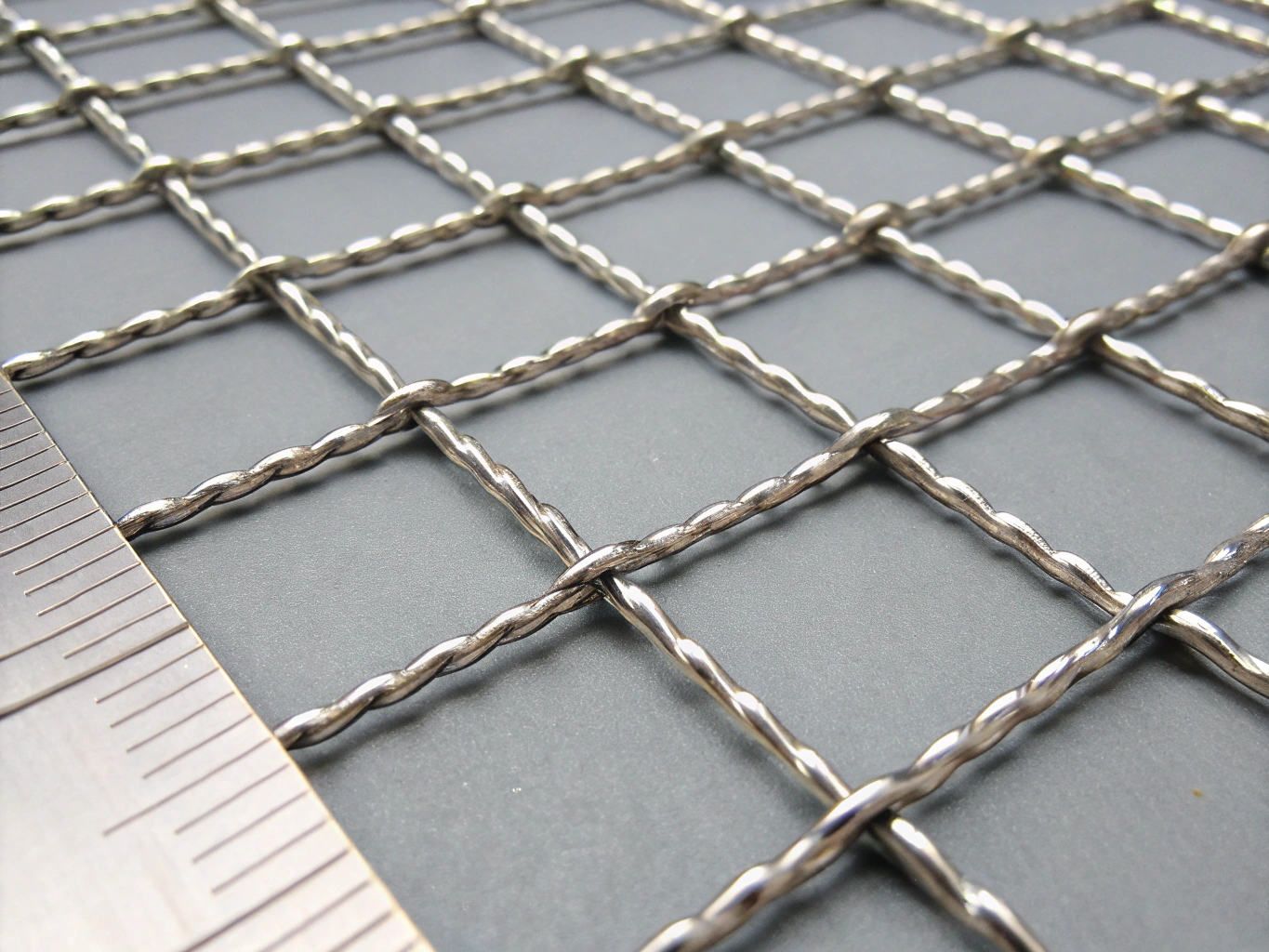

Engineered with thick-gauge stainless steel and high-carbon alloy wires. Pre-crimped construction guarantees dimensional retention during high-velocity aggregate grading, heavy mineral dewatering, and high-pressure fluid strainers.
Maintains aperture precision under high kinetic load from heavy minerals and aggregates.
Mechanically locked wire intersections eliminate strand shifting and premature fatigue.
Compatible with vibrating deck frames, trommel screens, and heavy filtration vessels.
Heavy-duty woven mesh specifications
Review standard wire diameters, aperture sizes, and alloy grades engineered for high abrasion and heavy load screening.
Abrasion Testing
ASTM G65 Class A / B
Tested for severe wet & dry gouge
Weave Styles
Double Crimp / Lock Crimp
Flat top & intermediate options
Available Alloys
304, 316L, 2205, 310S
High manganese & Spring steel
Tolerance Standards
ISO 4783 / ASTM E2016
Precision aperture certified
Mesh Count | Aperture Size | Wire Diameter | Open Area | Abrasion Resistance | Weight | Standard Alloys |
|---|---|---|---|---|---|---|
2 x 2 Mesh | 10.70 mm(0.421 in) | 2.00 mm(0.079 in) | 70.9% | Very High (Class A) | 3.95 kg/m² | AISI 304 / 316 / High Carbon |
3 x 3 Mesh | 6.87 mm(0.270 in) | 1.60 mm(0.063 in) | 65.8% | High (Class B+) | 3.84 kg/m² | AISI 304 / 316L / 321 |
4 x 4 Mesh | 4.75 mm(0.187 in) | 1.60 mm(0.063 in) | 56.0% | High (Class B+) | 5.12 kg/m² | AISI 316 / 316Ti / 904L |
6 x 6 Mesh | 2.83 mm(0.111 in) | 1.40 mm(0.055 in) | 44.8% | Extreme (Class A+) | 5.88 kg/m² | AISI 304 / 316 / Duplex 2205 |
8 x 8 Mesh | 1.98 mm(0.078 in) | 1.20 mm(0.047 in) | 38.7% | High (Class B) | 5.76 kg/m² | AISI 316L / Duplex 2205 |
Material alloys & mechanical performance
Engineered alloy properties for high-wear vibrating screens and aggressive chemical environments.
Need custom aperture or specialized crimp profiles?
MutualFilter manufactures custom woven wire mesh up to 3000 mm roll widths with edge hook preparations (shrouded, folded, or welded hooks) for all vibrating screen decks.
Heavy-duty woven mesh applications
Engineered for high mechanical loads, abrasive slurries, and extreme thermal conditions across demanding industrial environments.

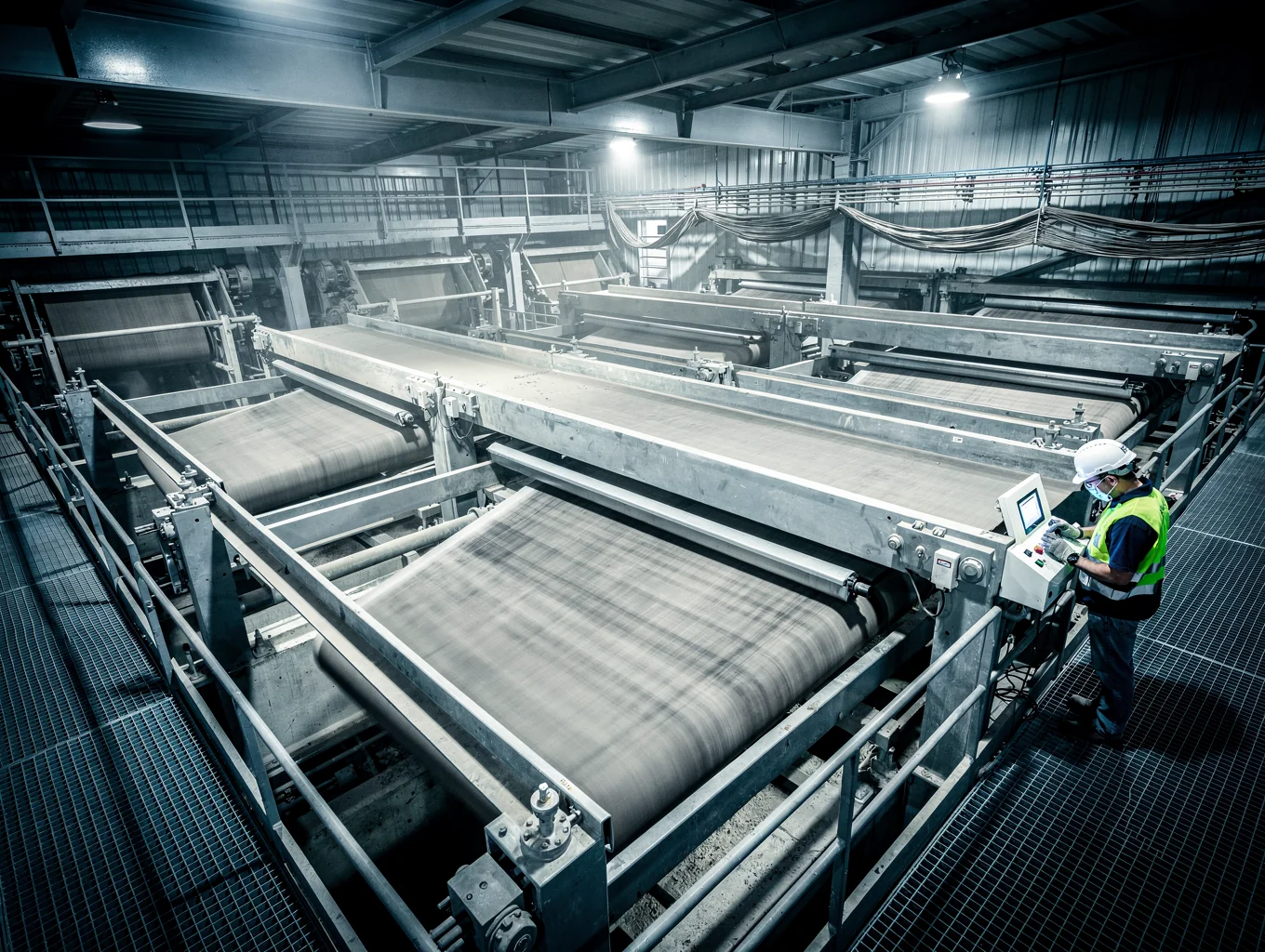

Heavy-gauge crimped wire mesh screens designed for extreme abrasive stress, continuous vibration, and high mass throughput.
Technical Highlights
- Square aperture 2.0 mm – 100.0 mm
- High impact resistance
- Custom edge hook strips available

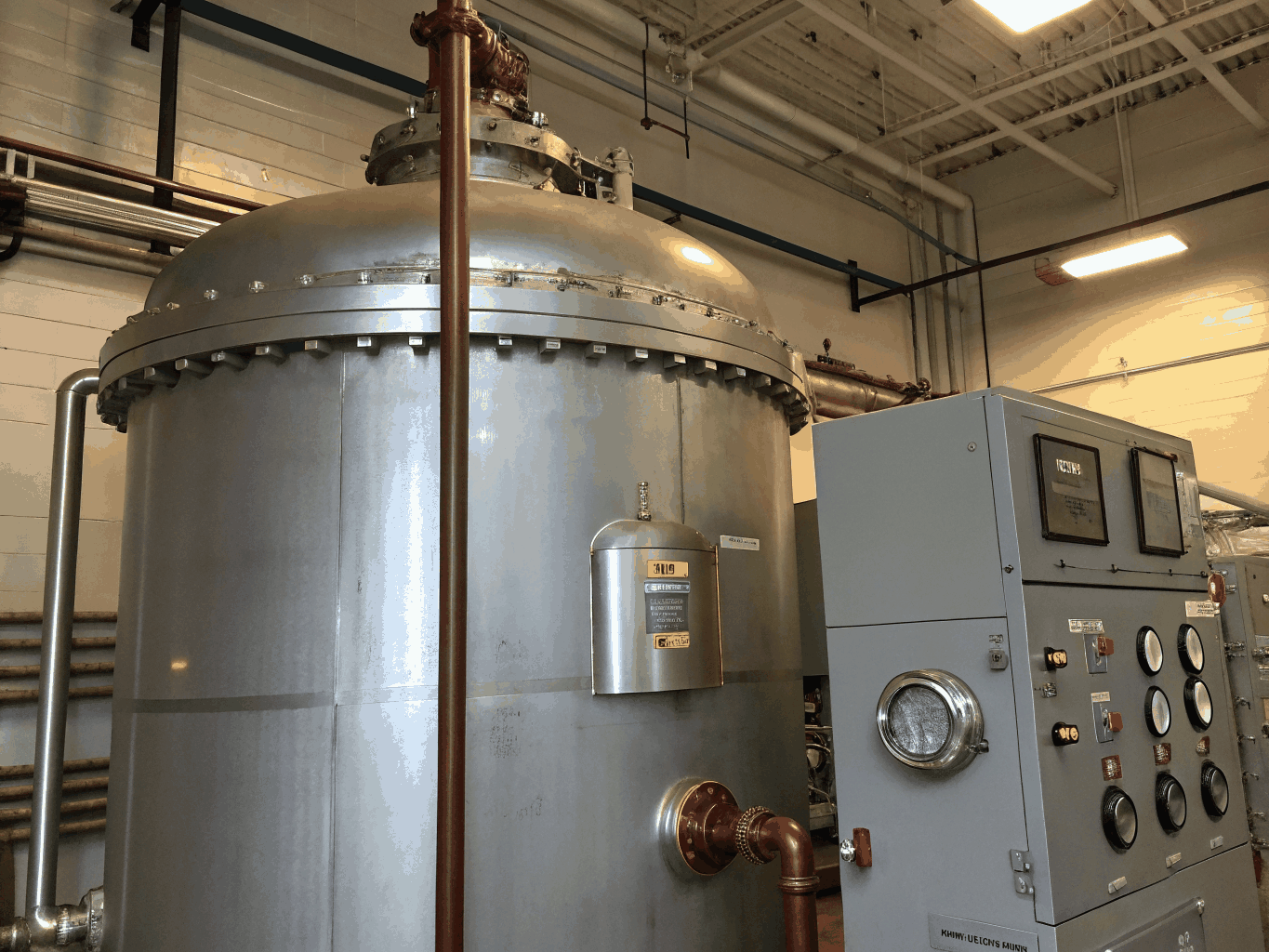

Multi-layered and heavy plain Dutch weaves engineered to support heavy catalyst mass while resisting corrosive chemical attack.
Technical Highlights
- Uniform flow distribution
- Pressure drop resistance
- Full material trace certificates (EN 10204 3.1)

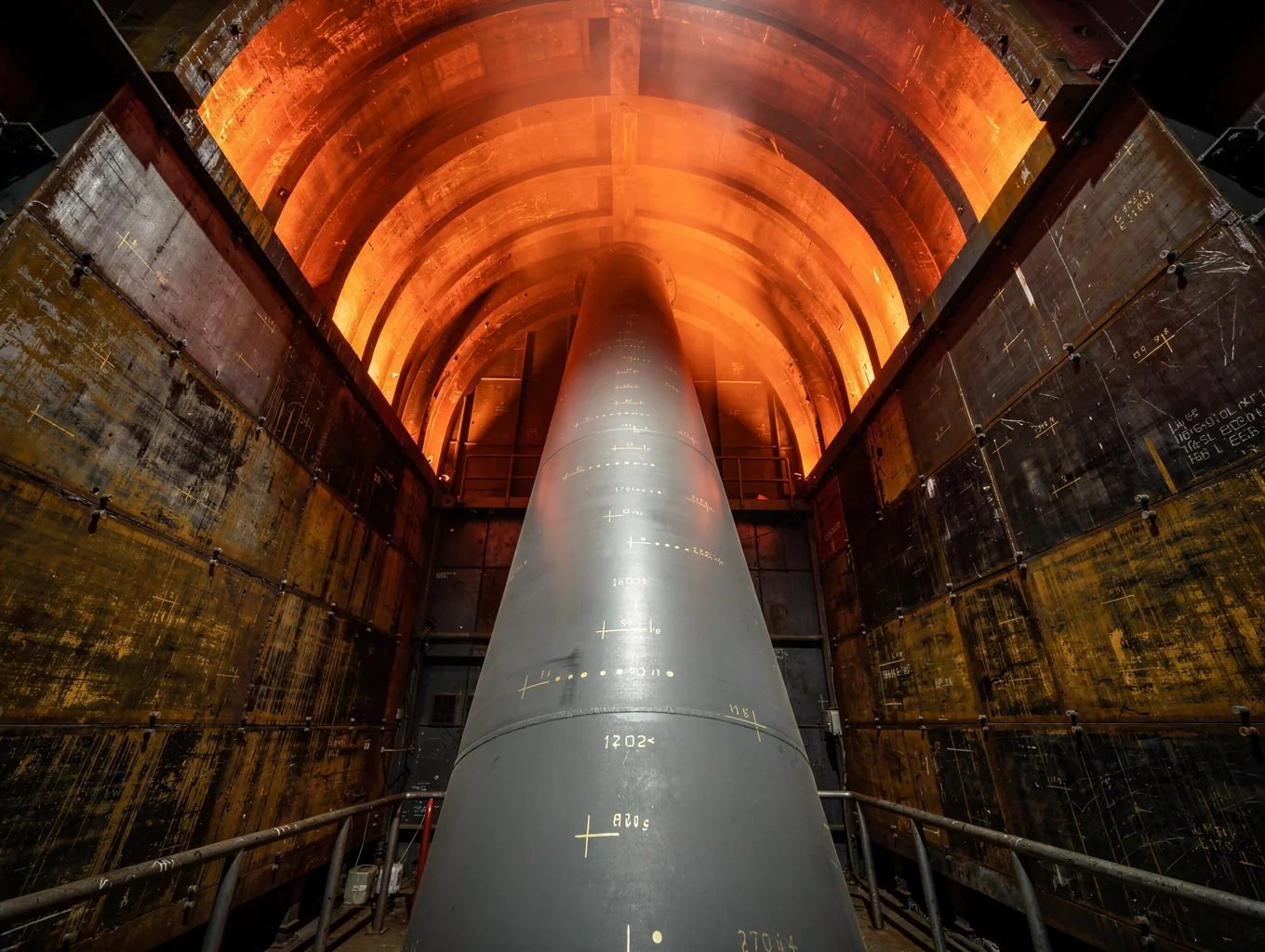

High-heat resistant woven mesh manufactured with specialized austenitic alloys that maintain tensile strength at up to 1150°C.
Technical Highlights
- Thermal cycling endurance
- Scale and oxidation resistance
- Custom framed baskets & flat panels

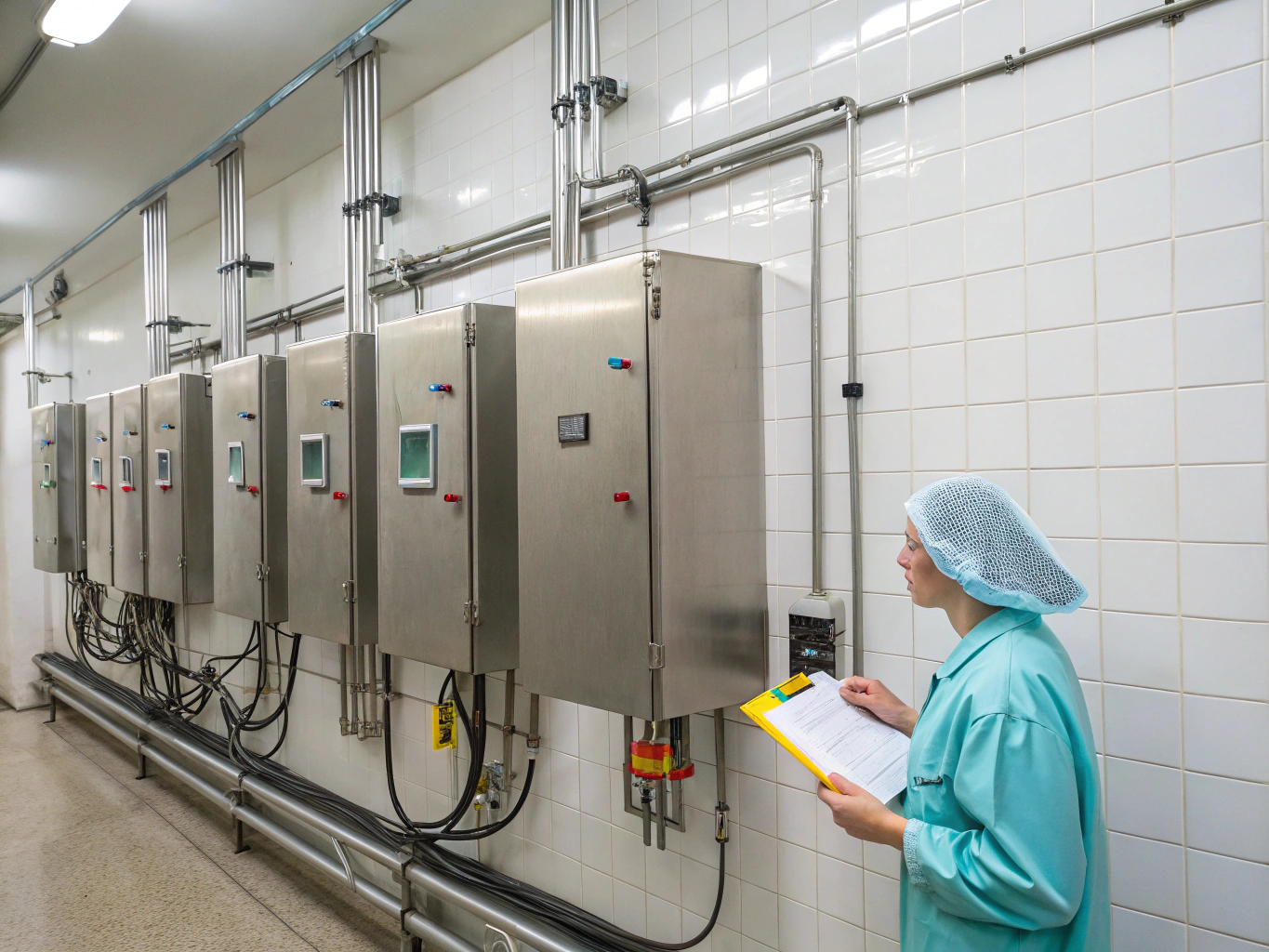

Rigid, non-raveling pre-crimped screens providing personnel safety, impact barrier protection, and unimpeded ventilation.
Technical Highlights
- High stiffness-to-weight ratio
- Electro-polished or raw finish
- Custom boundary laser cut panels
Need custom aperture, crimp geometry, or alloy testing?
Our application engineers assist with open area calculations, tensile requirements, and mill test certificates.
Discuss your heavy mesh specification
Send your drawings, wire diameter targets, and quantity requirements to receive a fast technical quote.
Reinforced Weave Mesh for High-Load Industrial Applications
Engineered with heavy-gauge crimped wires and precision alloys, our reinforced weave mesh delivers high mechanical strength, dimensional stability, and extended service life under abrasive slurry flows and severe screening tension.
Material Certification & Traceability
Certified stainless steel alloys with full MTR heat lot tracking, 3.1 mill test certificates, and strict ASTM metallurgical verification for heavy-duty use.
Heavy-Duty Fabrication Capability
Precision heavy-gauge double crimp, lock crimp, and intermediate weaves with reinforced hook strips, welded edges, and custom frame preparations.
Standard Engineering Response Time
Rapid 24-hour technical drawing reviews, custom weave feasibility assessments, and direct engineer-to-engineer consultation for demanding systems.
