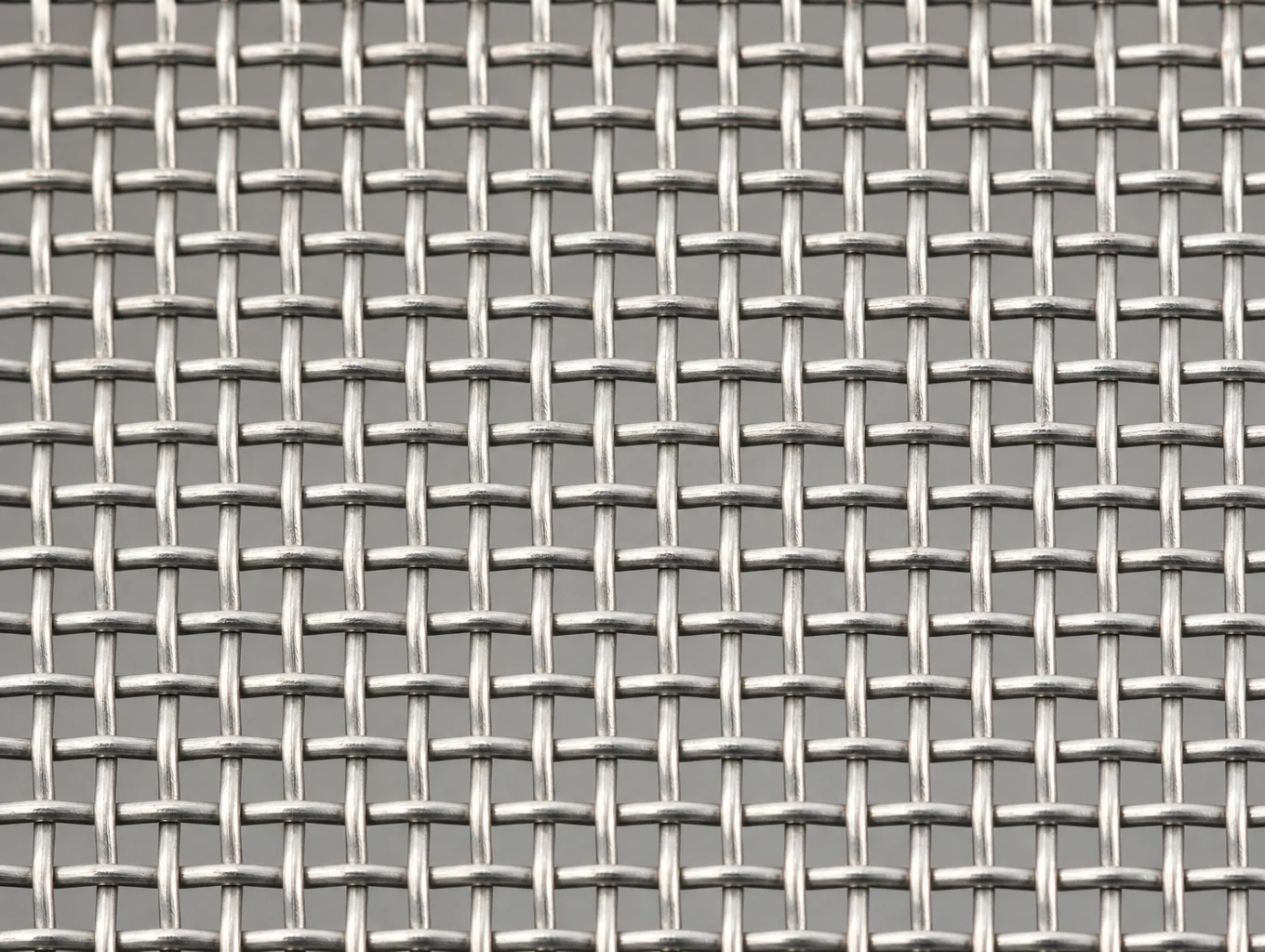

Specialty Woven Mesh
Welcome to our specialized wire cloth division. Beyond conventional square weaves, we engineer advanced woven mesh architectures engineered for extreme mechanical loads, rapid filter cake release, high-pressure polymer extrusion, and exotic alloy environments. Explore our three primary specialty sectors below or review our custom fabrication capabilities.
Primary Specialty Categories
Explore our dedicated product lines engineered for specific process conditions, severe structural requirements, and tailored custom specifications.
Five-Heddle Weave
A specialized 5-shaft weave configuration providing a completely flat surface on one side with rectangular flow channels for rapid cake discharge.
- Smooth single-side drainage plane
- Superior filter cake release
- Vacuum & pressure underdrain media
Heavy-Duty Woven Mesh
Engineered from thick cold-drawn wire alloys for severe mechanical stress, coarse particle screening, and heavy industrial separation.
- Heavy wire gauges up to 8.0 mm
- High impact & abrasion resistance
- Mining, quarry & aggregate screening
Custom Woven Mesh
Precision engineering service delivering proprietary weave patterns, exotic metallurgical alloys, and finished fabricated mesh components.
- Specialty alloys: Hastelloy, Inconel, 904L
- Slit coils, stamped discs & formed packs
- Custom warp/weft wire combinations
Extended Weave Geometries & Fabrication
Weave structures available in master roll stock, precision-slit coils, sintered multilayer sheets, and custom CNC fabricated parts.
Reverse Dutch Weave
Reinforced warp wires provide ultra-high mechanical stability for continuous polymer melt screen changers and high-pressure extrusion.
Twilled Dutch Weave
Nested double-layer weft structure creating tortuous pore pathways for sub-micron critical liquid and aerospace gas filtration.
Sintered Multi-Ply Laminates
Diffusion-bonded wire cloth composites offering fixed aperture integrity, zero wire migration, and repetitive backwash capability.
High-Tension Bolting Cloth
Precision square mesh with maximized open area and high tensile resilience for sifting, dry classification, and screen printing.
Wedge Wire Hybrid Combinations
Combining heavy-gauge support profile wires with precision woven cloth for heavy dewatering, intake filtration, and rotary drums.
Market Grade Precision Plain
Tight-tolerance industrial plain weave configurations conforming to ASTM E2016 and ISO 9044 standards for general separation.
Specialty Weave Technologies
From precision micron Dutch weaves to diffusion-bonded sintered laminates and V-wire configurations, explore our engineered wire mesh geometries tailored for demanding industrial separation.
Reverse Dutch Weave
Constructed with heavier, tightly packed warp wires and thinner weft wires driven closely together. This inverted geometric configuration yields high tensile resistance along the length of the roll, ideal for continuous pressure belt filters and horizontal screening.
Key Performance Characteristics
- High mechanical strength prevents roll elongation under continuous belt tension
- Rigid wire structure resists blinding and localized deformation
- Precise aperture consistency even under high differential pressures (ΔP)
Primary Applications
- Polymer melt continuous filtration ribbon belts
- Extruder screen changers in plastic recycling
- High-pressure liquid clarification filters
Common Alloy Grades
Weave Technology Comparison Matrix
Select the optimal geometry tailored to your pressure, particle size, and cleanability demands.
Constructed with heavier, tightly packed warp wires and thinner weft wires driven closely together. This inverted geometric configuration yields high tensile resistance along the length of the roll, ideal for continuous pressure belt filters and horizontal screening.
Combines twill weaving pattern with Dutch wire packing, where warp and weft wires pass over two and under two wires. Creates zero straight-through light pathways, forming a tortuous capillary pore matrix for absolute micro-particulate retention.
Characterized by thin, uniform wire diameters woven in a balanced square mesh. Offers substantially higher percentage open area than standard market grade wire cloth, enabling maximum flow velocity and fast particulate classification.
The most widely specified industrial standard wire mesh. Woven with proportional wire diameter to aperture ratios in plain or twilled square patterns, providing a robust balance of structural resilience, wear resistance, and cost efficiency.
A monolithic filtration plate composed of 2 to 7 layers of wire mesh diffusion-bonded under vacuum at elevated temperatures. Combines fine filter control layers, protective scrims, and heavy drainage/support grids into a single unyielding composite.
Features precision V-shaped wire profiles welded onto internal support rods. The two-point contact slot configuration produces an expanding relief angle, virtually preventing particulate entrapment and maximizing automated continuous self-cleaning efficiency.
Engineering FAQs & Selection Guidance
Direct technical answers from our filtration wire cloth specialists.
Need a Custom Mesh Specification or Sintered Assembly?
Our engineering team assists with wire gauge calculations, differential pressure models, and ISO 9044 quality certifications.
Specialty Weave Specifications & Parameters
Engineering reference matrix for stainless steel specialty weaves. Compare mesh counts, wire dimensions, open area ratios, micron thresholds, and working pressure ratings across high-performance filtration structures.
Specialty Filtration Weave Matrix
Select a row to review targeted application dynamics and flow characteristics
| Weave Geometry | Mesh Count Range | Wire Diameter | Aperture (µm) | Open Area | Pressure Rating | Standard Alloys |
|---|---|---|---|---|---|---|
Plain Dutch Weave (PDW) Liquid clarification, fuel filtering, chemical catalyst retention | 12×64 to 80×700 mesh/in | 0.025 – 0.58 mm | 6 – 280 µm | 18% – 32% | Medium to High (up to 25 bar) | AISI 304, 316L, 317L |
Twilled Dutch Weave (TDW) Critical hydraulic fluids, polymer melt spin packs, sub-micron gas scrubbing | 20×250 to 400×2800 mesh/in | 0.014 – 0.25 mm | 1 – 85 µm | 12% – 24% | High (up to 40 bar) | AISI 316L, 904L, Hastelloy C-22/C-276 |
Reverse Plain Dutch (RPD) Auto-screen continuous polymer changers, high-tension vibration screening | 48×10 to 152×24 mesh/in | 0.18 – 0.70 mm (Warp heavy) | 45 – 250 µm | 22% – 38% | Very High (up to 60 bar mechanical load) | AISI 304, 316L, Duplex 2205 |
Reverse Twilled Dutch (RTD) High-pressure plastic extrusion, deep well oil intake screens | 72×15 to 325×38 mesh/in | 0.10 – 0.45 mm | 15 – 130 µm | 16% – 30% | Very High (up to 75 bar) | AISI 316L, Monel 400, Inconel 600 |
Broad Mesh / Single Notch Dutch Fluidized bed gas distribution, solid-liquid centrifugal separation | 10×40 to 60×180 mesh/in | 0.08 – 0.40 mm | 80 – 450 µm | 28% – 44% | Medium (up to 18 bar) | AISI 304L, 316L, Titanium Gr. 2 |
Sintered 5-Layer Mesh Composite Pharma chromatography nutsche filters, nuclear water demineralization | Composite Structure (12-500 mesh) | Integrated matrix | 2 – 100 µm | 15% – 35% | Extreme (up to 120 bar differential) | AISI 316L, Alloy 20, Duplex 2507 |
Bubble Point & Pore Integrity
Tested in accordance with ASTM F316 protocols to assure absolute particulate retention and verify zero pore deformation under maximum continuous pressure.
Custom Slitting & Stamping
Ultrasonic slit narrow coils, calendering down to strict thickness tolerances, and clean-cut multi-layer spot-welded filter packs manufactured to print.
Quality & Inspection Standards
Custom weave engineering and precision mesh fabrication
From custom alloy wire draws to non-standard aperture ratios and tight-tolerance calendering, we configure loom setups and finishing processes directly for your filtration parameters.
Custom Specialty Weave Mesh for Demanding Filtration
From high-pressure polymer extrusion to critical aerospace and chemical straining, our engineers configure custom weaves, alloy selections, and micron ratings engineered for your exact operational limits.
Fully certified 304, 316L, 904L, and nickel alloy heats with direct mill test certificates and full batch lot traceability.
Specialty Plain, Twilled Dutch, and Reverse Dutch weaves engineered to tight aperture tolerances and high differential pressures.
Rapid design-for-manufacturing (DFM) reviews, technical mesh drafting, and application qualification support within 24 business hours.
