Gas and Air Filtration

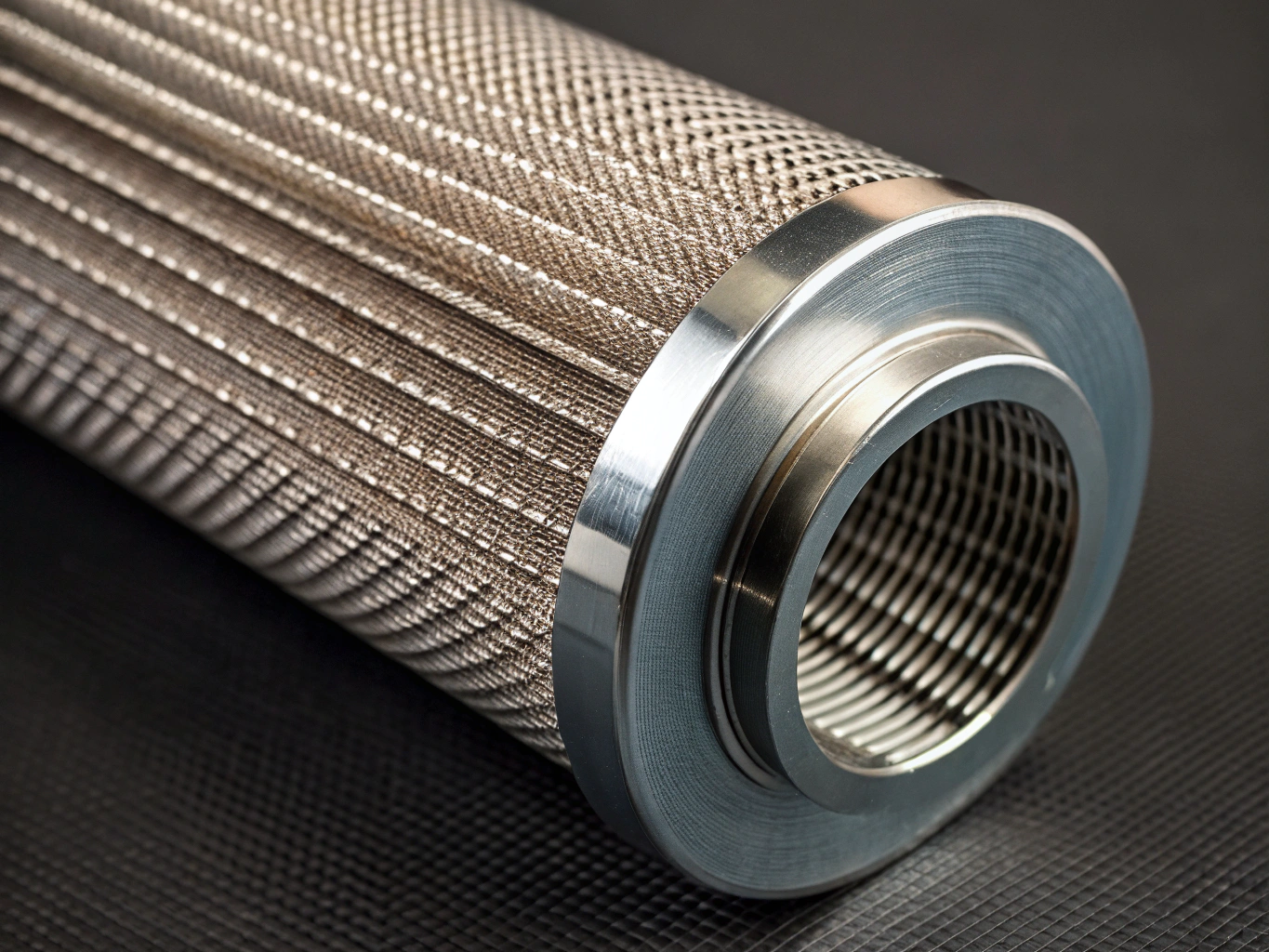

Engineered stainless steel and high-nickel alloy woven mesh media designed for high-temperature gas purification, catalyst recovery, hot gas particulate control, and high-velocity gas-liquid coalescing. Fabricated from AISI 316L, 310S heat-resistant stainless steel, and Inconel alloys with apertures from 1 to 250 microns and continuous temperature ratings up to 950°C. Dutch weaves and multi-layer sintered laminates deliver high burst strength and complete pulse-jet cleanability.
High-temperature and pressure-rated woven & sintered media engineered for hot gas flows.
316L / 310S / Inconel Gas Media
Dutch weaves and sintered laminates for flue gas & demisters
Gas Filtration Wire Mesh Selection Matrix
Standard mesh specifications for gas, steam, hot air, and process exhaust applications
| Weave Structure | Micron Rating Range | Max Working Temp | Primary Performance Advantage | Details |
|---|---|---|---|---|
| Plain Dutch Weave Wire Mesh | 10 µm – 100 µm | 600°C | High mechanical strength with low pressure drop across high-velocity gas streams | Specs |
| Twilled Dutch Weave Wire Mesh | 1 µm – 25 µm | 650°C | Tight tortuous flow path for sub-micron particulate separation and fine gas mist | Specs |
| 5-Layer Sintered Wire Mesh | 2 µm – 200 µm | 800°C | Rigid structure eliminating media migration, fully pulse-jet cleanable | Specs |
| 310S High-Temperature Woven Mesh | 25 µm – 250 µm | 950°C | Exceptional resistance to oxidation and cyclic thermal stress in furnace exhausts | Specs |
Require Custom Pore Size or OEM Filter Element Fabrication?
MutualFilter manufactures custom screen cylinders, pleated pack elements, and multi-layer sintered discs tailored for OEM gas filtration machinery.
Engineered Wire Mesh for Critical Sector Demands
MutualFilter designs and manufactures heavy-duty woven and sintered stainless steel wire mesh assemblies tailored to high-temperature, corrosive, and high-velocity gas and air streams across global industrial sectors.
5-Layer Sintered Wire Laminate (1μm – 25μm)

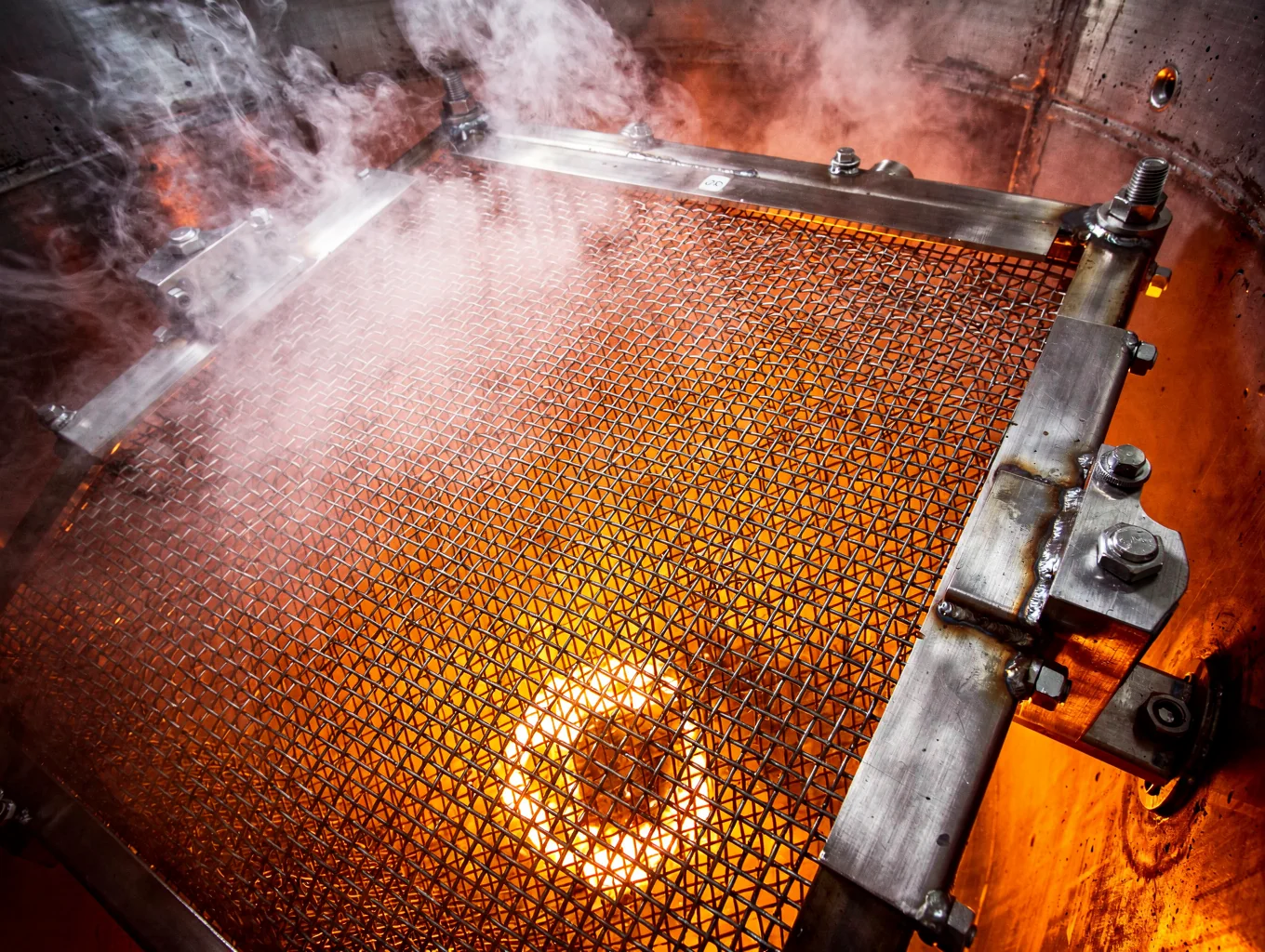

Petrochemical & Gas Refining
High-temperature gas desulfurization, catalyst fines recovery, and hot process gas stream purification.
Key Performance Attributes:
- Thermal shock resistance during purge cycles
- Zero fiber discharge under high turbulence
- Repeated backwash cleanability
Full Sector Technical Overview
Compare stainless wire mesh filtration parameters across key industrial sectors.
Need a Custom Gas or Air Filter Mesh Specification?
Our engineering team calculates aperture sizes, flow velocities, and pressure drops for specialized OEM gas filtration equipment and demanding high-temperature environments.
Need High-Temperature Gas or Air Filtration Elements?
Specify your flow velocities, operating temperatures, and retention targets. We configure woven and sintered wire mesh assemblies for severe thermal duties.
